Name: CS2314 - Response 6.5 Inch Coax 2 Way Car Speakers
Brand: Response
SKU: CS2314
Price: 82.90 NZD
Availability: InStock

CS2314 - Response 6.5 Inch Coax 2 Way Car Speakers

CS2314 - Response 6.5 Inch Coax 2 Way Car Speakers

CS2314

$82.90

Tax included.

Select quantity

Description

All speakers in this range are equipped with titanium coated fibre woofers and silk dome tweeters for smooth high frequency response.

Sold as a pair.

Specifications

Speaker Specifications

Sold as a Pair

true

Speaker Type

woofer

Nominal Impedance

4.0 Ω

RMS Power Rating

22.0 W

Resonant Frequency

73.0 Hz

Sensitivity (SPL@1W, 1m)

88.0

Mechanical Q (Qms)

3.85

Electrical Q Factor (Qes)

1.25

Total Q (Qts)

0.94

Equivalent Volume (Vas)

13.4 l

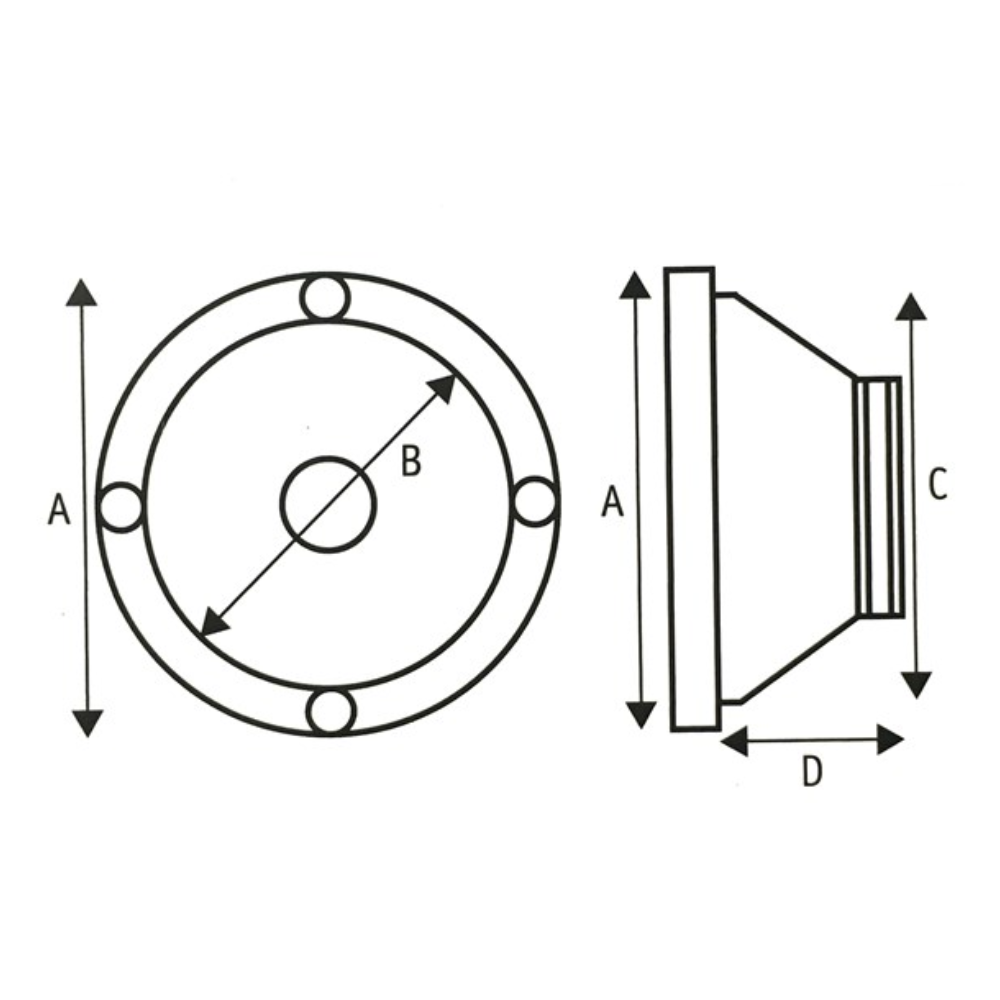

Side-to-Side Diameter (A)

165.0 mm

Mounting Hole Diameter (B)

158.0 mm

Cutout Diameter (C)

142.0 mm

Insert Depth (D)

58.0 mm

Product Dimensions

Height

62.0 mm

Diameter

165.0 mm

Packaged Dimensions

35.0cm(Length) x 19.7cm(Width) x 10.0cm(Height)

Packaged Volume : 6.9l

Packaged Weight : 2kg

Packaged Length : 35cm

Packaged Width : 19.7cm

Packaged Height : 10cm

Height : 62mm

Diameter : 165mm
