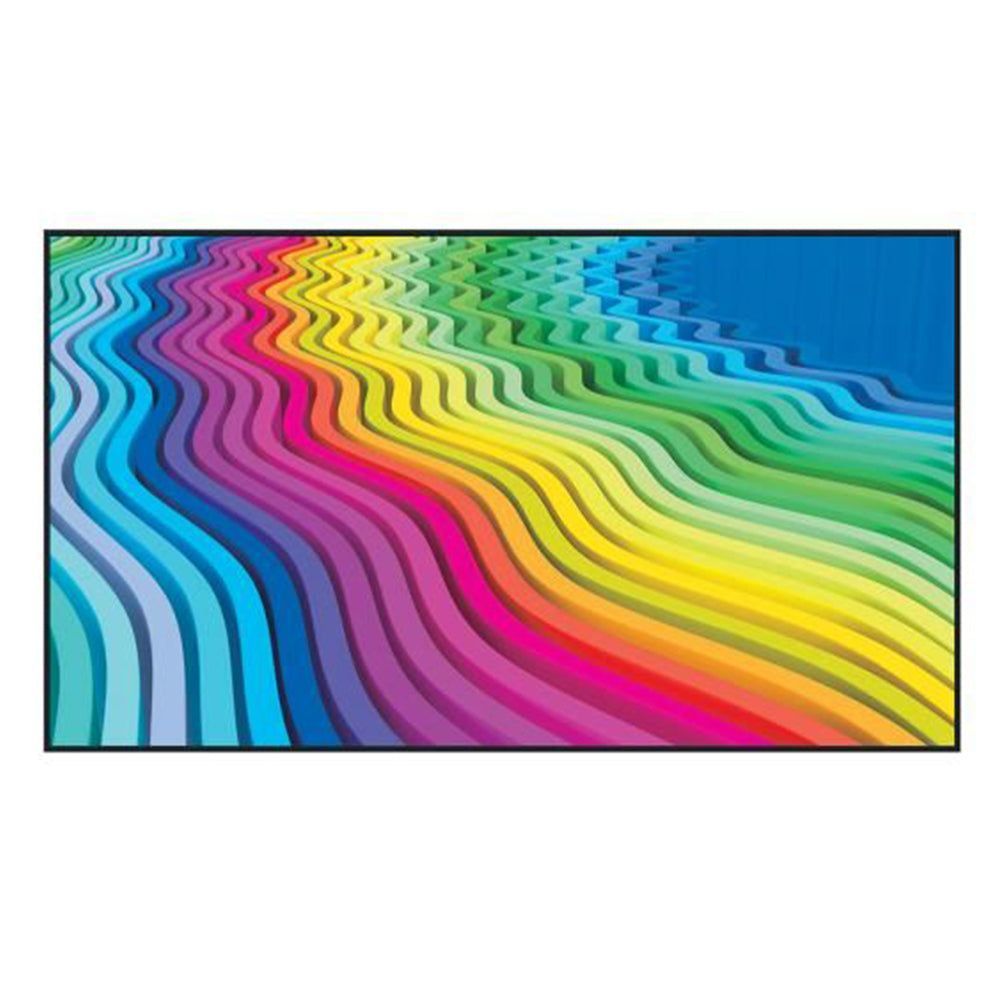

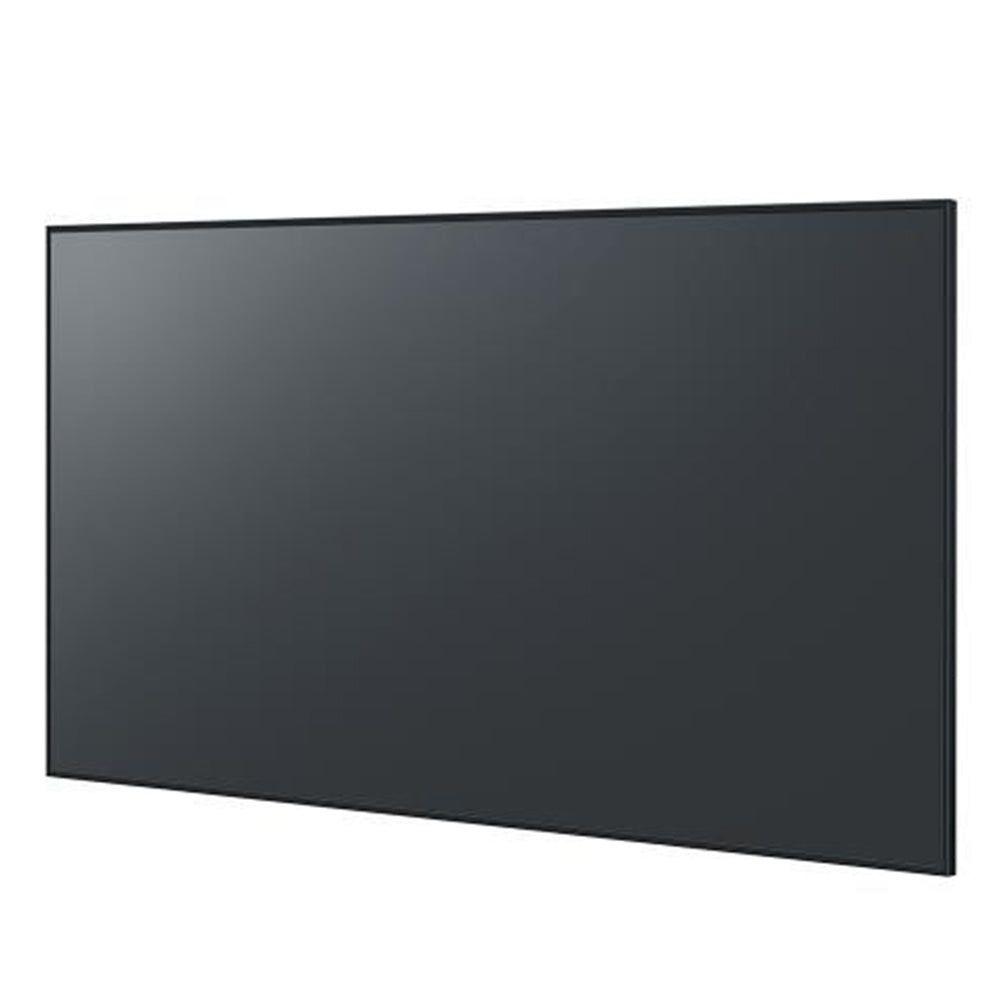

Panasonic TH-75EQ1W Entry-Level 4K 75" Professional Display

PanasonicSKU: TH-75EQ1W

Sale price$7,846.00


Entry-Level 4K 75" Professional Display

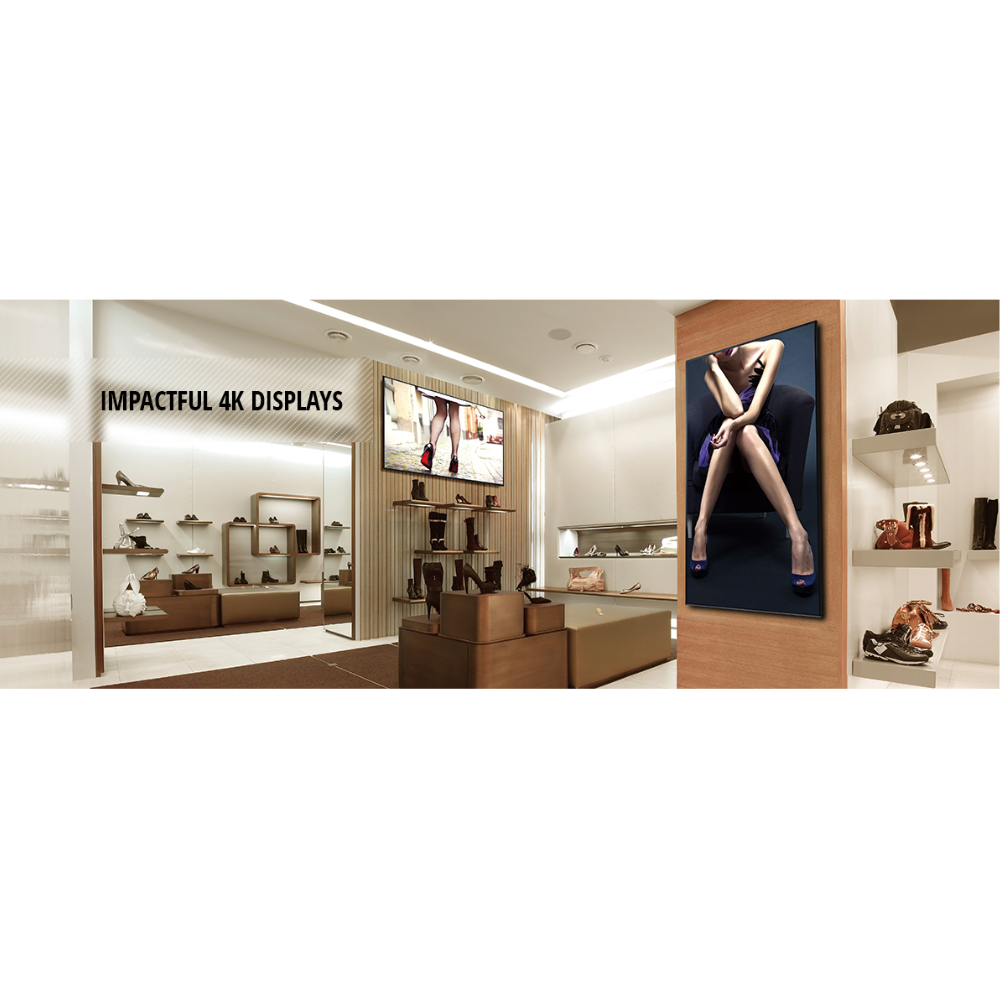

75" 4K professional entry-level digital display with a thin and stylish design offering high level digital signage with easy installation and high connectivity. Ideal for corporate and retail environments.

Key Features

  • 4k ultra HD resolution delivering the highest detail and image quality. Non-4K sources are also beautifully compensated.
  • Extensive connectivity features. 4K/60p video input signals via 2 x HDMI. Supports CEC over HDMI® for power on/off.
  • Easy set up and safe operation. Failover and Failback function for any unexpected troubles. Monitoring of multi-displays can be done through the free Multi Monitoring & Control software.

High flexibility and simple signage

The EQ1 Series features a built-in USB media player that enables 4K video, still-image and full HD content playback without needing external cables or a set-up box. Insert a USB memory device and edit a playlist with photographs and video files without using a PC and schedule the content to display in a specified order via the free Content Management Software. The cloning function makes it easy to copy the settings information from a master display via a USB device or LAN cable to synchronize playback on multiple displays, significantly reducing set up time.

Extensive connectivity options

The EQ1 Series offers an extensive range of connectivity features. 4K/60p video input signals via 2 x HDMI. Supports CEC over HDMI for power on/off synchronized to playback control. Two HDCP 2.2-compliant HDMI terminals can be used to play DRM-protected content. The display supports DVI-D, PC In, Video In, and USB input. Compatible with LAN, RS-232C for external control, with AMX or Creston Connected.

Easy set up and safe operation

You can use a USB memory device to easily copy the network setting for multiple displays, and the individual IP addresses for each unit are set automatically. During start up and when there is no signal, you can set the image of your choice to be displayed. Thanks to the failover and failback function, when the main video and audio signals are interrupted, the system immediately switches to alternative signals. Multi Monitoring & Control Software enables you to monitor and control up to 2,048 devices over LAN from a single PC.

Screen size (diagonal) (inch) 75-inch
Screen size (diagonal) (mm) 1892 mm
Aspect Ratio 16:9
Panel Type IPS Panel/E-LED
Effective display area (W x H) (mm) 1649 x 927 mm
Effective display area (W x H) (inch) 64.9 x 36.5 inch
Resolution 3840 x 2160
Brightness (typ.) 350 cd/m2
Contrast Ratio 1200 : 1
Response Time 8 ms (G to G)
Built-in Speaker 20 W [10 W + 10 W]
Power Requirements 110-127 V AC, 50/60 Hz, 220-240 V AC, 50/60 Hz
Power consumption 296 W
Power Off Condition Approx. 0.3 W
Standby Condition Approx. 0.5 W
Dimensions (W x H x D) (mm) 1681 x 959 x 73 mm
Dimensions (W x H x D) (inch) 66.2 x 37.8 x 2.9 inch
Bezel width (mm) 14.8 mm (all)
Bezel width (inch) 0.6 inch (all)
Weight (kg) Approx. 56 kg
Weight (lbs.) 123.5 lbs.
Wall-hanging pitch (mm) 600 x 400 mm VESA Compliant
Wall-hanging pitch (inch) 23.6 x 15.8 inch VESA Compliant
Orientation Landscape/Portrait
Tilting angle 0-20 degrees forward/backward with landscape/portrait setting
Operating environment 0°C to 40°C (32°F to 104°F) / for up to 1400 m (4593 ft) altitude,0°C to 35°C (32°F to 95°F) / Altitude 1400-2800 m [4593 ft to 9186 ft]
Operating Time 24 h/day
Terminals | AUDIO OUT Stereo Mini Jack (M3) x 1 / Variable Output (-∞ - 0 dB) (at 1 kHz 0 dB Input, 10 kΩ Loaded)
Viewing angle [(T/B)/(L/R)] 178° / 178° (CR≧10)
Terminals | Video/AV In 4-pole Mini Jack (M3) x 1 (Audio: Stereo Mini Jack (M3) x 1(Shared with DVI-D/PC In))
Panel Surface Treatment Anti-glare type (Haze 28%)
Data Sheet
