Features
Includes:

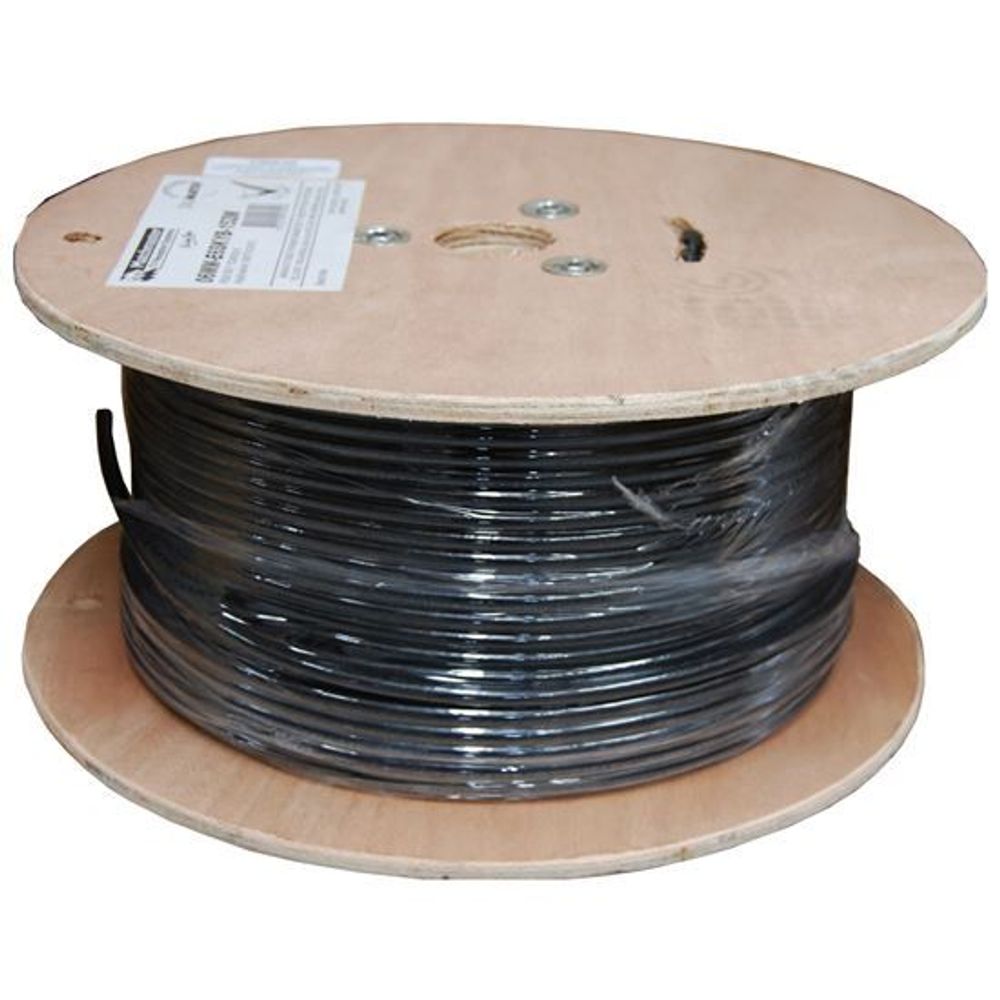

- Cat6A U/FTP Gel Filled Cable Roll
- UV Stabilised Black PE Jacket for outdoor cable
- 305m Wooden Roll
- External Underground Cable
Specifications
| PRODUCT SPECIFICATIONS | ||
| Category | U/FTP-ZST CAT6A-4P-PE | |
| Test Standard | ISO/IEC1180, TIA-568-C.2 | |
| Conductor | Material | SOLID-Bare Copper |
| Nom. O.D. (mm): 0.560 | Up: +0.005 Down: -0.005 |
|
| Inner Screening Material | Aluminum Foil | Drain wire: Yes |
| Insulation | Material | Skin-foam-skin PE |
| Diameter | 1.330±0.05mm | |
| Core Colour | A. White-Blue | B. White-Orange |
| C. White-Green | D. White-Brown | |
| Sheath | Thickness | 0.55 ± 0.05mm |
| External O.D. | 7.4 ± 0.4mm | |
| Surface | Clean | |
| Material | LDPE (complies RoHS) | |
| Colour | Black | |
| Surface Printing | Letter Height | 3.0±0.3mm |
| Colour | White | |
| Print Error & Space | ≤±0.5%, 1m | |
| Packing | Drum | |
| Packing Length | 305±1.5m | |
| Rip-cord | Yes | |
| Out Jacket Physical Properties | Before Aging | Tensile Strength (Mpa): ≤10.0 Elongation (%): ≤350 |
| Aging Period (°C x hrs) | 100°C x 24h x 10d | |
| After Aging | Elongation (%): ≤300 | |
| Cold bend (-20±2°C×4h) | No visible cracks | |
| Electrical Characteristics (20°C) | Delay Shew (ns/100m) | ≤45 |
| Unbalanced-to-ground capacitance (pf/100m) max. | 330 | |
| DC Resistance (Ω/100m) max | 9.38 | |
| DC Conductor Resistance Unbalance (%) max | 5.0 | |
