Name: RK95-03 - Rika Solar Kit
Brand: Hunan Rika Sensors
SKU: RK95-03
Price: 434.70 NZD
Availability: OutOfStock

RK95-03 - Rika Solar Kit

RK95-03

$434.70

Tax included.

Select quantity

Description

!!COMING SOON!!

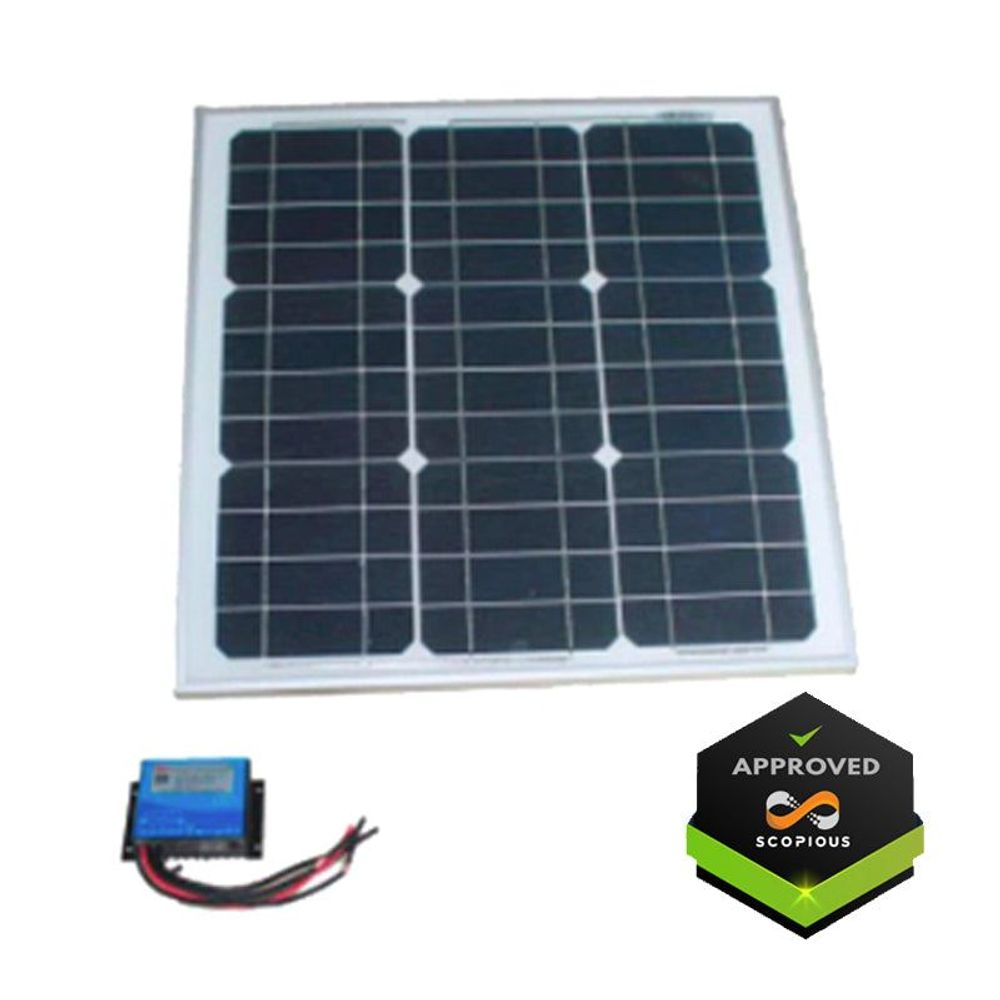

The Rika RK95-03 Solar power supply system consists of 18V/50W solar panel, installation bracket, solar charge controller, and cable assembly (Inverter included by order only). Solar energy is a clean renewable new energy, has no moving parts, no noise, no pollution, high reliability. It can provide reliable power to sensors or weather stations, mainly used for wireless sensor, automatic test station, automatic weather stations and other power supply.

Please Note that Battery is NOT included

Need help selecting the right IoT solution?

Features

Controller automatic identification 12VDC/24VDC
Key operation, automatic save settings parameters, low standby power consumption
high charging efficiency
4 work modes optional: normally open, light mode, light and time mode, manual mode
With battery under-voltage, over-voltage, output overload, short circuit, battery or solar panels
reverse connect protection function etc
Fault code instructions

Specifications

Details
Product SKU	RK95-03
Rated current	10A
Rated voltage(self-adaption)	12V / 24V
Solar panel voltage	18V / 36V
Start voltage	7V / 14V
Shutoff voltage	3V / 6V
Float charging voltage	13.8V / 27.6V
Boost charging voltage	14.8V / 29.6V
Equalizing charging voltage	14.4V / 28.8V
Over voltage protection	16.5V / 33.0V
Over voltage recovery	15.0V / 30.0V
Under voltage protection	10.8V / 21.6V
Under voltage recovery	12.8V / 25.6V
Commercial power start voltage	=10.8V / =21.6V
Commercial power shutoff voltage	=12.8V / =25.6V
Circuit protection	Overload, short protection
No-load current	=12mA@12V
Ingress Protection	IP67
Working temperature	-40?~+70?
Dimension	81.062.020.0mm
