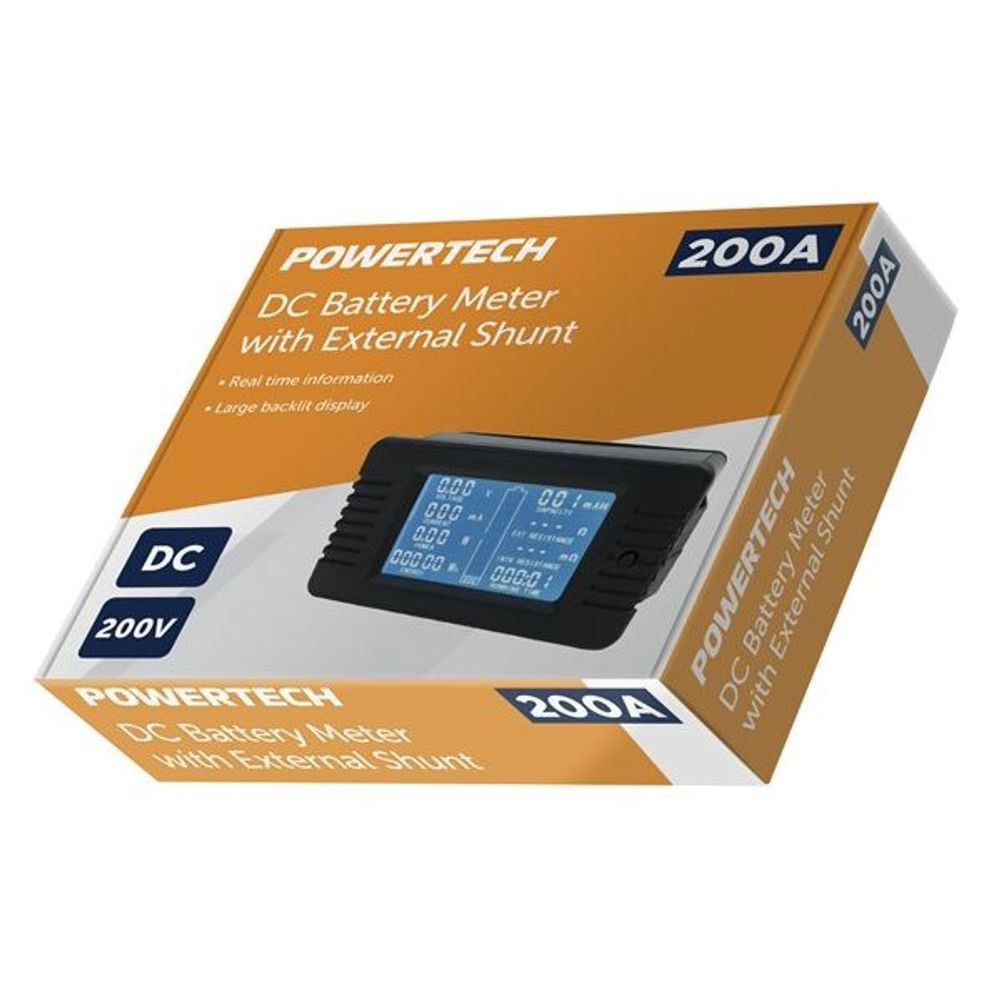

QP2322 - 200A 6.5-200V DC Power Battery Meter with External Shunt

PowertechSKU: QP2322

Price:
Sale price$85.90 NZD

Tax included

Stock:
In stock

Expected Delivery Times

North Island - 2-6 Working Days

South Island - 3-10 Working Days

Features

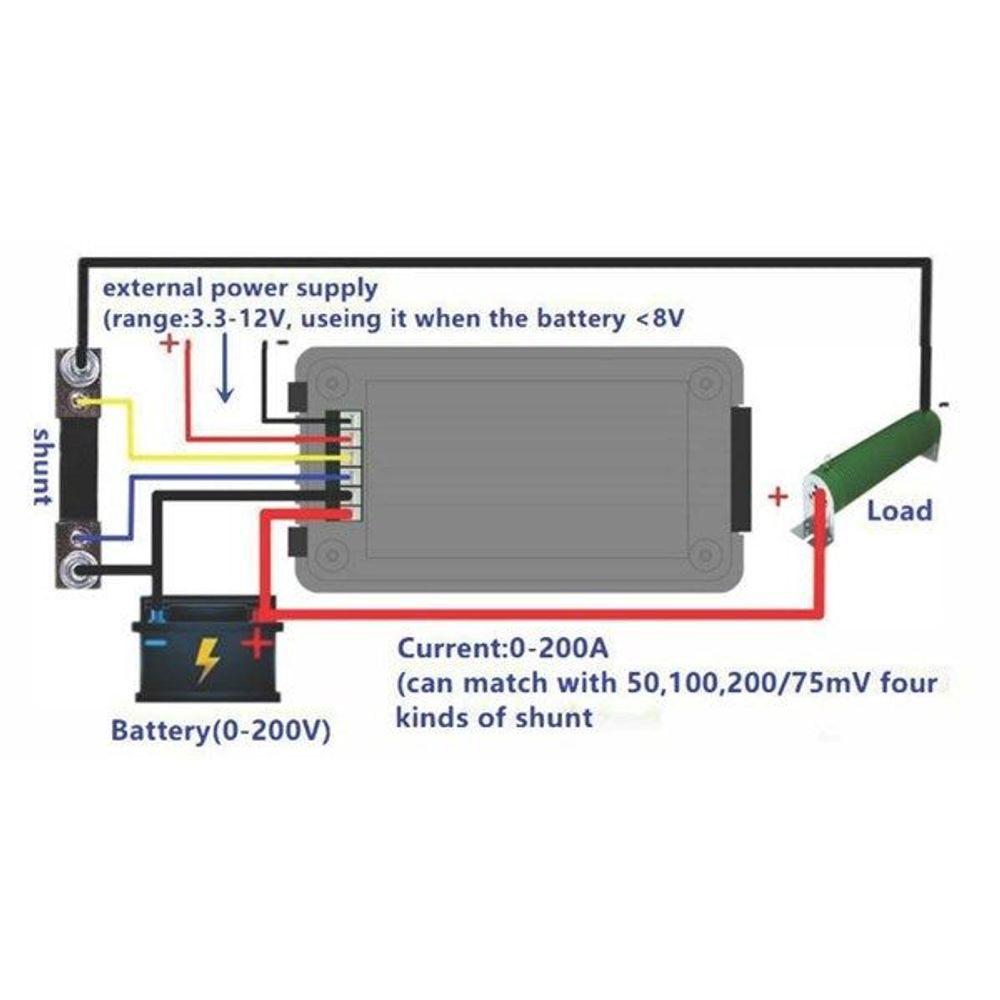

QP2322 Exceptionally handy for keeping an eye on your solar installation, generator, battery banks, and more. Totally self-contained, so wiring is a breeze, and it’s powered from the DC power you’re monitoring. Suitable for solar systems up to approximately 40kW (must not exceed 200A). Provides details on power, voltage, and current, as well as aggregation of power throughput (which can mean generation or usage depending on your installation) with an easy reset function. Bright blue backlit display provides easy reading in any lighting conditions.  Features: • Real time information • Large backlit display • Aggregated energy throughput Power Consumption: 0.2W  Measurement speed: 2 times/s





Specifications





Specifications

Packaged Volume : 0.47l
Packaged Weight : 0.26kg
Packaged Length : 13.5cm
Packaged Width : 10cm
Packaged Height : 3.5cm
Width : 90mm
Height : 50mm
Depth : 25mm
Weight : 62g
DC Voltage Accuracy : 1%
DC Volts Measurement Range : 6.5V, 200V
DC Current Accuracy : 1%
Current DC Measuring Range : 0A, 200A
Availability : Stocked item
