Description
Features

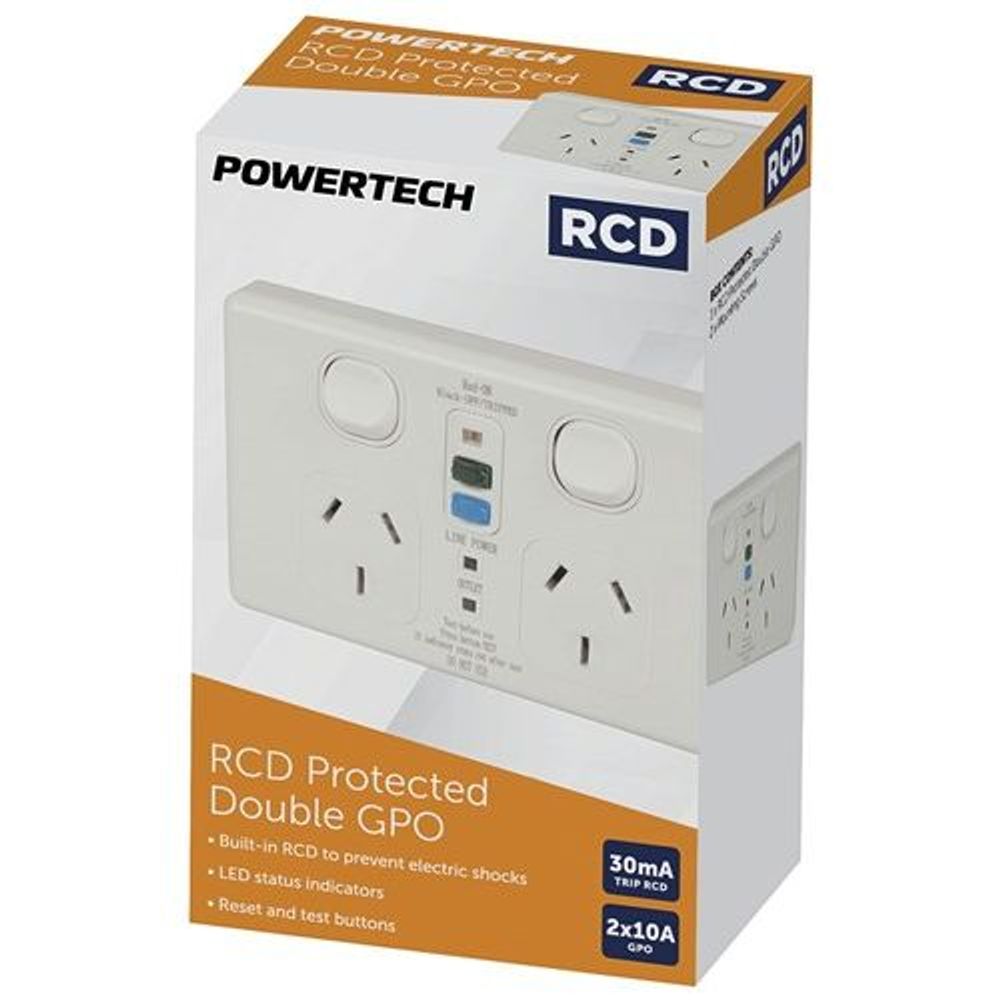

PS4048 1 Year Warranty240V Mains PowerDesigned to be a direct replacement for your standard GPO fittings, combining two standard 240AC 10A mains (GPO) outlets with a built-in RCD to provide protection against electrical shock. In the event of a fault with the connected appliance or accident, such as cutting through the mains lead, the unit will provide complete isolation from mains. A test button, status indicator, and reset button allows you to check the RCD, which we recommend should be done each time before use. Meets Australian and New Zealand safety standards.Please Note: This item should be installed by a licenced electrician.Features:- Electric shock protection- LED status indicator- Reset and test buttons- Line power indicatorSpecifications:CD Classified: Type IIRated Tripping Current: 30mAOperating Speed: <40mS Max.L/Nin-L/Nout: 2KVEndurance: 2000 Cycles MinuteContact Break: Double PoleStandards: RCD Module-AS NZS 3190, Socket-AS NZS 3112Minimum Back Box Depth: 35mmFixing Screws: M3.0 x 25mmCable Capacity: 4x2.5mm2,2x4mm2,1X6mm2
Specifications
Specifications
| AC current rating : 20A |
| AC Voltage rating : 240V |
| AC Frequency : 50Hz |
| IP Rating : 30 |
| Dust/Particle Ingress Protection : 3 - Objects > 2.5mm, Tools, thick wires etc |
| Liquid/Moisture Ingress Protection : 0 - Not protected |
| Width : 120mm |
| Height : 76mm |
| Depth : 50mm |
| Weight : 144g |
| Packaged Volume : 0.67l |
| Packaged Weight : 0.18kg |
| Packaged Length : 14.7cm |
| Packaged Width : 8.1cm |
| Packaged Height : 5.6cm |
| Plug or Socket Type : Mains AU/NZ 3 Pin |
| Device : Socket |
| Dielectric Withstanding Voltage : 6kV |
| Availability : Stocked item |
