MM2015 - 12V - 30V, 100VA, 6A Multi-Tapped/Dual Type 2170 Transformer

PowertechSKU: MM2015

Price:
Sale price$47.90 NZD

Tax included

Stock:
In stock

Expected Delivery Times

North Island - 2-6 Working Days

South Island - 3-10 Working Days

Features

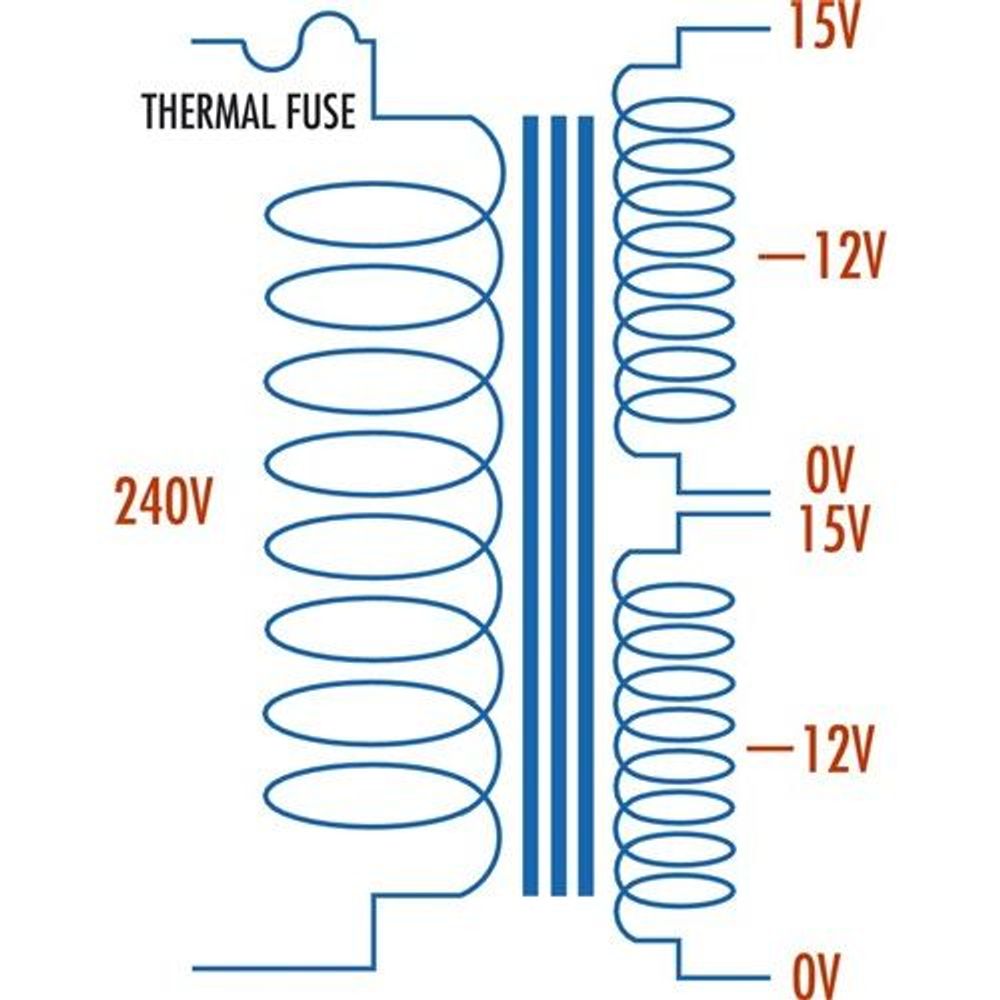

MM2015 240V Mains PowerTraditional laminated iron core transformers suitable for new projects, hobby projects or as a  replacement in existing equipment. They have a thermal fuse built into the primary winding for added safety and a wide variety is available to suit your specific needs.Twin outputs may be wired in series to increase voltage or in parallel (in phase only) to increase current. • Primary Connection: 200mm Fly Leads





Specifications





Specifications

AC current rating : 3A, 3A
AC Voltage rating : 12V, 12V, 15V, 15V
Weight : 1600g
Mains Voltage Range : 240V
Rated for AU Mains : true
Max Input Power : 100VA
Packaged Volume : 0.78l
Packaged Weight : 1.58kg
Packaged Length : 11.8cm
Packaged Width : 8.2cm
Packaged Height : 8.1cm
Type of Transformer : Laminated Core
Case Type : 2170
Primary Winding Connection : Flyleads
Secondary Winding Connection : Solder Tags
Secondary Winding Configuration : Multi-tapped
Temperature Rise Above Ambient at Rated Power : 70°C
Regulation : 7%
Core Material : Laminated Iron
Magnetising Current : 80mA
Thermal Fuse : true
Mount Spacing (A) : 91mm
Core Winding Depth (D) : 76mm
Case Length (L) : 80mm
Case Width (W) : 44mm
Case Height (H) : 68mm
Type of converter or transformer : laminated/toroidal transformer
Availability : Stocked item
