Description

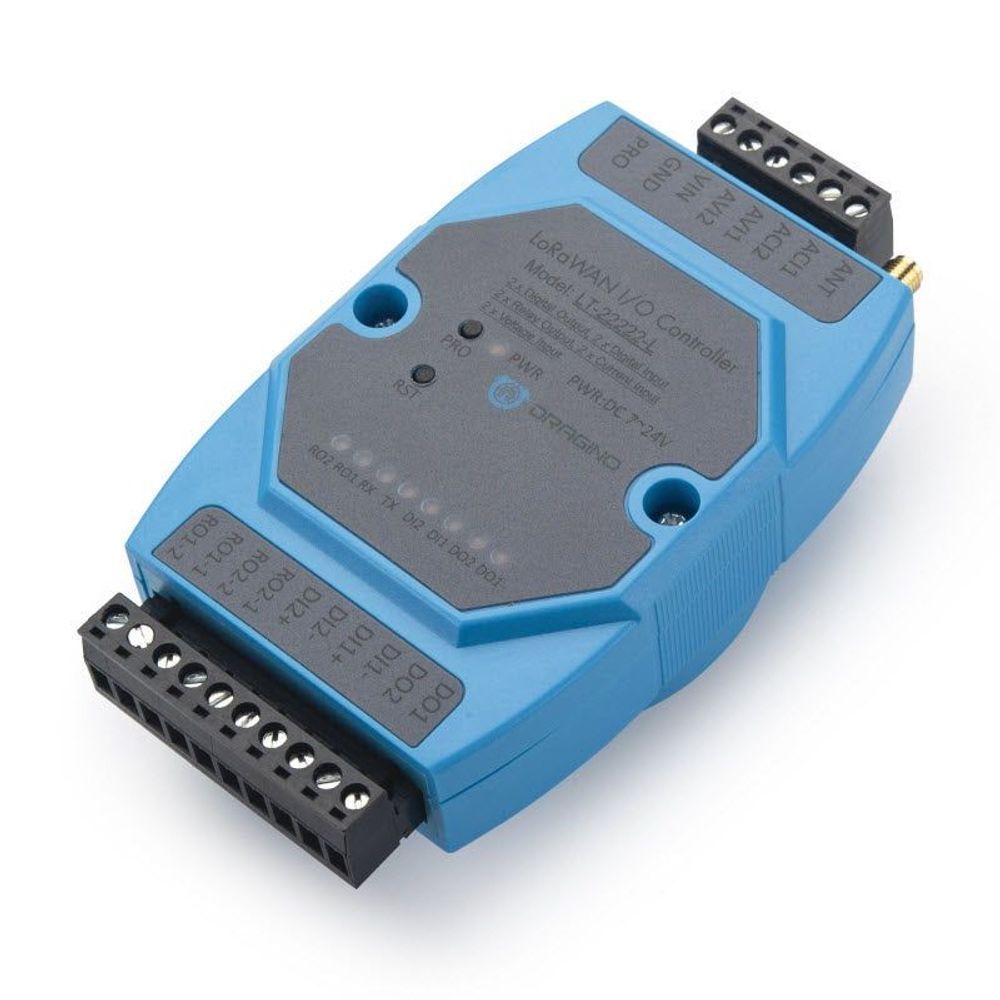

Dragino LT-22222-L AS923 LoRaWAN IoT Multi I/O Controller. The Dragino LT series I/O Modules are Long Range LoRa I/O Controllers. It contains different I/O Interfaces such as: analog current Input, analog voltage input, relay output, digital input and digital output etc. The LT I/O Modules are designed to simplify the installation of I/O monitoring.
The LT I/O Controllers allows user to send data and reach extremely long ranges. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption. It targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, building automation, and so on.
Need help selecting the right IoT solution?
.
The LT I/O Controllers allows user to send data and reach extremely long ranges. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption. It targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, building automation, and so on.
Need help selecting the right IoT solution?
.
Features
- SX1276/78 LoRa Wireless Chip
- LoRaWAN Class A & Class C protocol
- STM32L072xxxx MCU
- Optional Customized LoRa Protocol
- Bands: AS923
- AT Commands to change parameters
- Smart Buildings & Home Automation, Logistics and Supply Chain Management, Smart Metering
- Smart Agriculture, Smart Cities, Smart Factory
| Details | |
|---|---|
| Manufacturers SKU | LT-22222-L-AS923 |
| Frequency | AS923 |
| Module | SX1276/78 Wireless Chip |
| Power Input | 7 - 24V DC |
| Power Consumption | Idle: 4mA@12v |
| Tx Power | 20dB |
| Interfaces | 2 x Digital dual direction Input (Detect High/Low signal, Max: 50v, or 220v with optional external resistor), 2 x Digital Output (NPN output. Max pull up voltage 36V,450mA), 2 x Relay Output (5A@250VAC / 30VDC), 2 x 0~20mA Analog Input (res:0.01mA), 2 x 0~30V Analog Input (res:0.01v) |
| Frequency Range | Band 1 (HF): 862 ~ 1020 Mhz, Band 2 (LF): 410 ~ 528 Mhz |
| Sensitivity | -148 dBm |
| Device Size | 14.5 x 8 x 5 cm |
| Device Weight | 170 g |
| Details | |
|---|---|
| Contains | LT I/O Controller x 1, Stick Antenna for LoRa RF part x 1, Bracket for controller x1, Program cable x 1 |
Specifications
| Details | |
|---|---|
| Manufacturers SKU | LT-22222-L-AS923 |
| Frequency | AS923 |
| Module | SX1276/78 Wireless Chip |
| Power Input | 7 - 24V DC |
| Power Consumption | Idle: 4mA@12v |
| Tx Power | 20dB |
| Interfaces | 2 x Digital dual direction Input (Detect High/Low signal, Max: 50v, or 220v with optional external resistor), 2 x Digital Output (NPN output. Max pull up voltage 36V,450mA), 2 x Relay Output (5A@250VAC / 30VDC), 2 x 0~20mA Analog Input (res:0.01mA), 2 x 0~30V Analog Input (res:0.01v) |
| Frequency Range | Band 1 (HF): 862 ~ 1020 Mhz, Band 2 (LF): 410 ~ 528 Mhz |
| Sensitivity | -148 dBm |
| Device Size | 14.5 x 8 x 5 cm |
| Device Weight | 170 g |
