Description

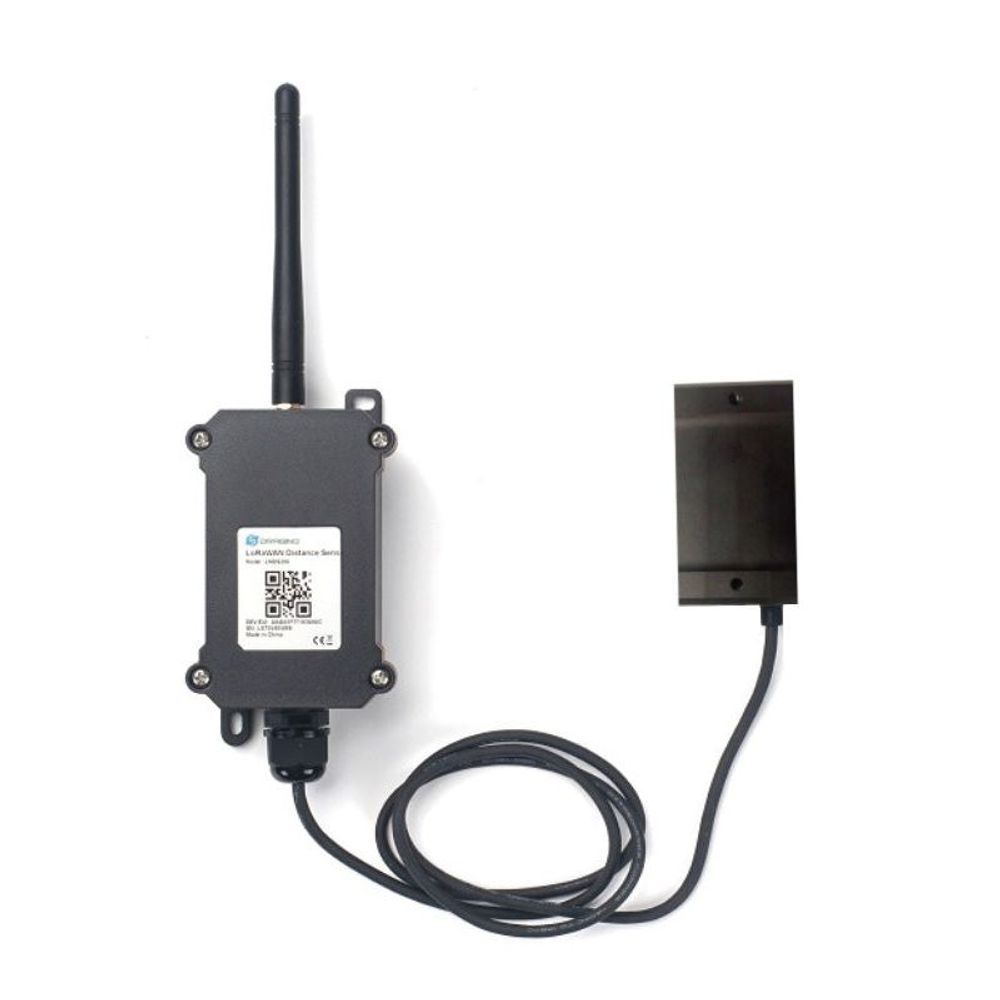

The Dragino LMDS120 is a LoRaWAN Microwave Radar distance sensor. It uses Microwave Radar to detect the distance between sensor and different objects. Different from ultrasonic or Lidar measurement. Microwave Radar is more reliable for condensation and dusty environments. It can sense correct distance even there is water or dust on top of the sensor. The LMDS120 can be applied to scenarios such as horizontal distance measurement, parking management systems, object proximity and presence detection, intelligent trash can systems, robot obstacle avoidance, automatic control, sewer, etc.
The LoRa wireless technology used in LMDS120 allows the device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.
The LMDS120 is powered by 8500mAh Li-SOCI2 battery, it is designed for long term use up to 5 years.
Need help selecting the right IoT solution?
.
The LoRa wireless technology used in LMDS120 allows the device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.
The LMDS120 is powered by 8500mAh Li-SOCI2 battery, it is designed for long term use up to 5 years.
Need help selecting the right IoT solution?
.
Features
- LoRaWAN 1.0.3 Class A
- Ultra-low power consumption
- 60Ghz Microwave Radar for distance detection
- Monitor Battery Level
- Uplink on periodically
- Downlink to change configure
- 8500mAh Battery for long term use
- Wall Mountable
- Outdoor Use
| Details | |
|---|---|
| Frequency | AS923 |
| LoRaWAN | 1.0.3 Class A |
| Distance detection method | 60Ghz Microwave Radar |
| Measure Range | 15cm ~ 1200cm |
| Accuracy | ± (3mm + S*0.2%). S = Measure Value |
| Measurement Angle | 25 degrees horizontal and 23 degrees vertical |
| Power Method | 8500mAh Battery for long term use |
| Details | |
|---|---|
| Contains | LoRaWAN Radar Sensor, Antenna |
Specifications
| Details | |
|---|---|
| Frequency | AS923 |
| LoRaWAN | 1.0.3 Class A |
| Distance detection method | 60Ghz Microwave Radar |
| Measure Range | 15cm ~ 1200cm |
| Accuracy | ± (3mm + S*0.2%). S = Measure Value |
| Measurement Angle | 25 degrees horizontal and 23 degrees vertical |
| Power Method | 8500mAh Battery for long term use |
