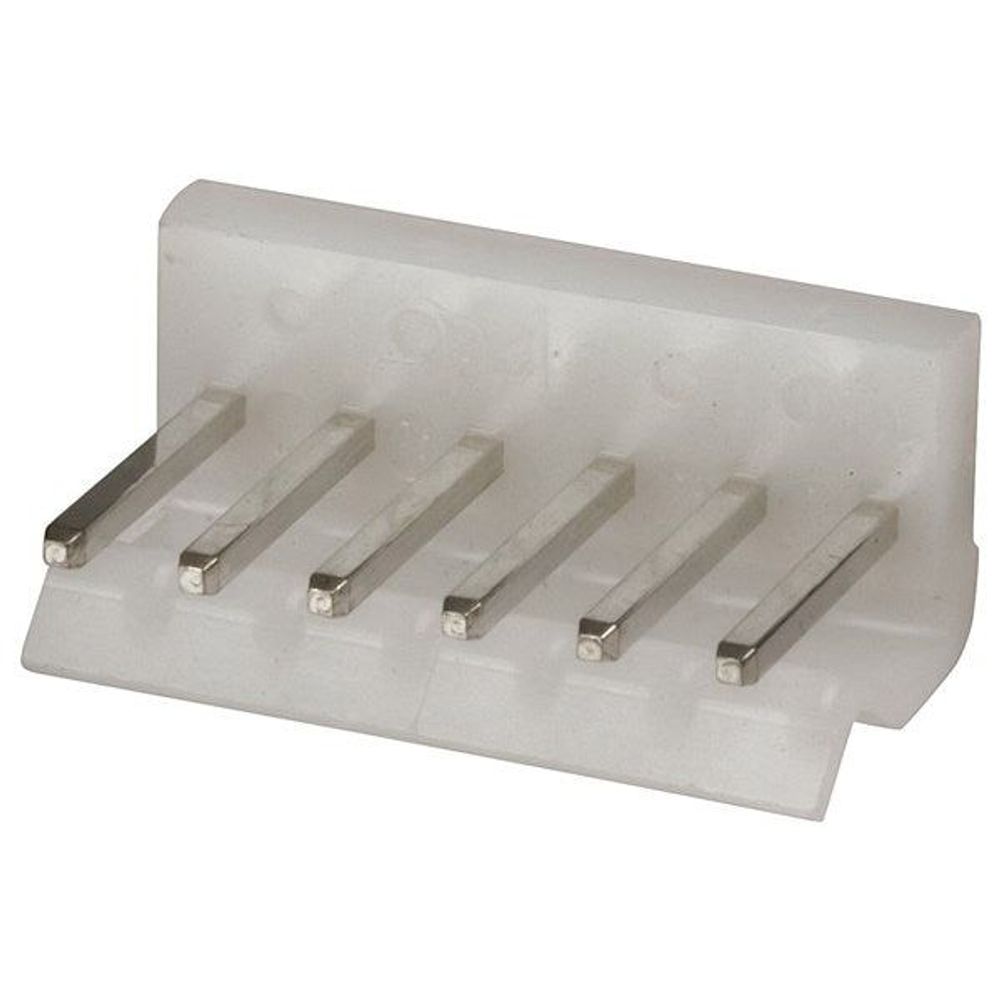

HM3446
The contacts are rated at 250V @ 7A AC/DC which makes them an ideal power connector to a PCB. They are end to end stackable and commonly seen as the output connector on Switchmode power supplies.Features:
- Wire Pull- Out force: 2.85kg
- Unmating Force: 150g
- Durability: 25 cycles
- Housing: Nylon, UL 94V- 2
- Temperature: - 40 to 105°C
Specifications
Specifications
| AC current rating : 2.5A |
| DC current rating : 2.5A |
| DC Voltage : 250V |
| Outdoor / Exterior Scale : -40°C, 105°C |
| Mounting Method : PCB |
| Packaged Volume : 0.01l |
| Packaged Weight : 0kg |
| Packaged Length : 2.5cm |
| Packaged Width : 1.5cm |
| Packaged Height : 2.5cm |
| Type : Single Row Header |
| Device : Plug |
| Attachment Method : Crimp |
| Pack Quantity : 1pc |
| Number of Pins : 6pc |
| Pin Spacing : 4mm (5/32") |
| Pin Size : 3.96mm |
| header locking : true |
| header polarised : true |
| Mating Force : 199gg |
| Contact Insertion Force : 681g |
| Contact Retention to Housing : 3.63kg |
