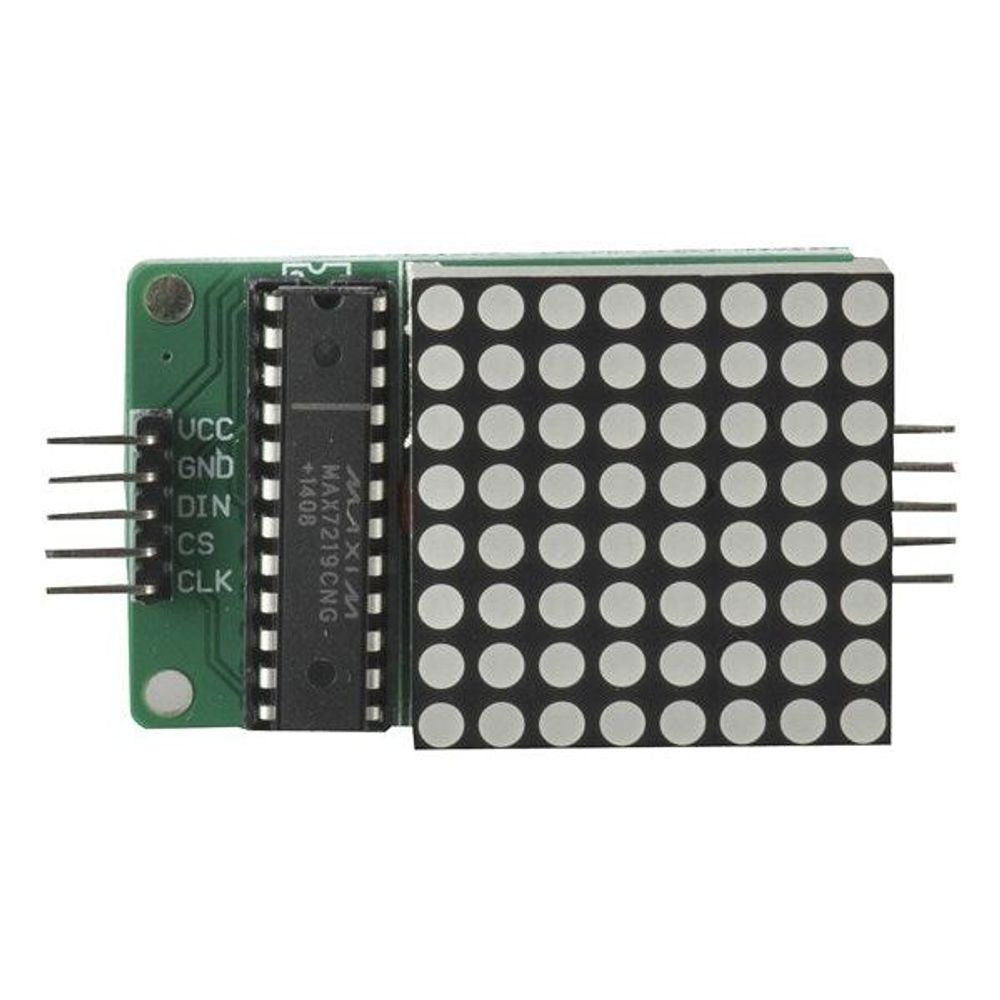

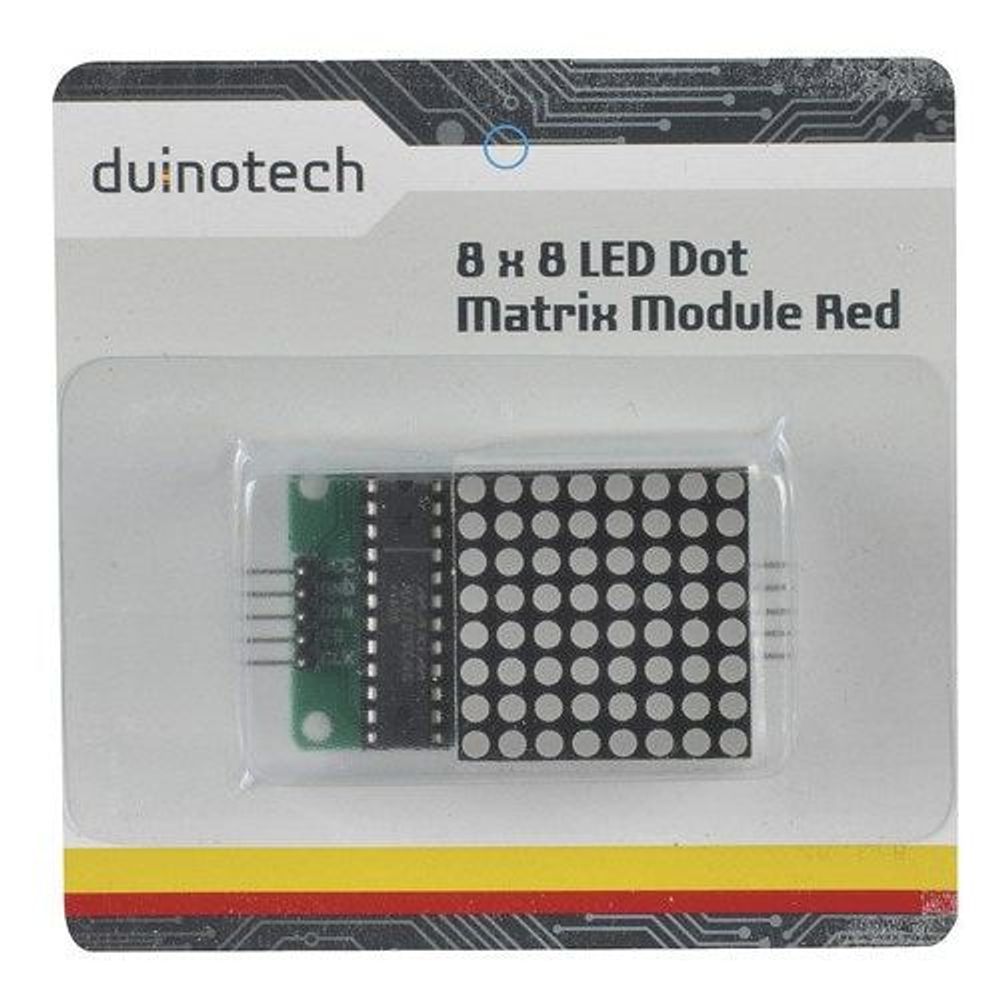

XC4499
Arduino® Compatible
LED
A fun way to make a small display is to use an 8x8 matrix or a 4-digit 7-segment display. Matrices like these are 'multiplexed' - to control 64 LEDs you need 16 pins. That's a lot of pins, and there are driver chips like the MAX7219 that can control a matrix for you, but there's a lot of wiring to set up and they take up a ton of space. After all, wouldn't it be awesome if you could control a matrix without tons of wiring? That's where these lovely LED matrix backpacks come in.
The matrices use the constant-current drivers for ultra-bright, consistent color, 1/16 step display dimming, all via a simple I2C interface.
Features:
- 8 rows and 8 cols LED matrix
- Driven by HT16K33 chip
- Access to I2C communication pins
- Occupy less IO ports of microcontrollers
- Easy connection and available for more experiment extensions
Specifications:
- Input voltage: 5V
- Rated input frequency: 400KHZ
- Input power: 2.5W
- Input current: 500mA
Specifications
Specifications
| Width : 62mm |
| Height : 32mm |
| Depth : 14mm |
| Packaged Volume : 0.04l |
| Packaged Weight : 0kg |
| Packaged Length : 8.1cm |
| Packaged Width : 5.9cm |
| Packaged Height : 0.9cm |
| Required Supply Voltage : 5V |
| Sensor Outputs : SPI (Shift-Register) |
| Sensor IC : MAX7219 |
