Overview

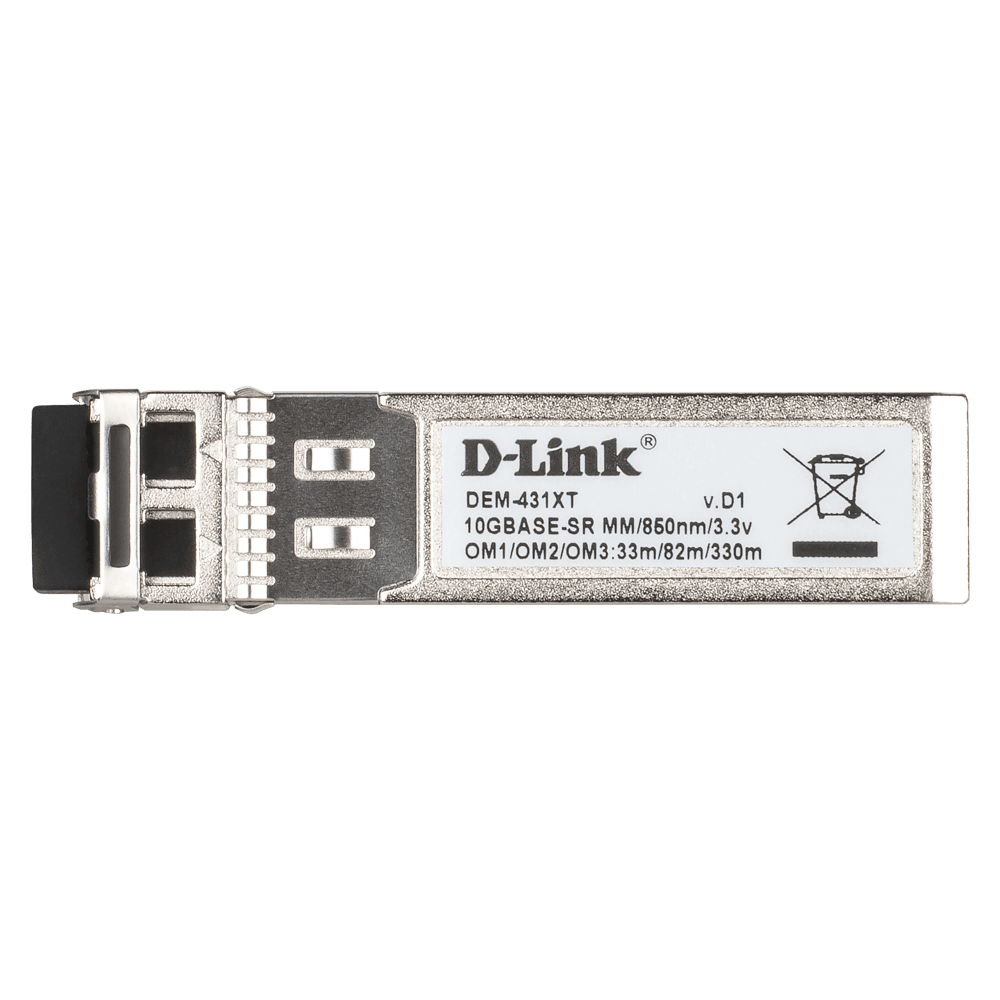

D-Link 10GBase-SR SFP+ Transceiver
D-Link’s 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on Switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer a wide variety of 10G Ethernet connectivity options for data centres, enterprise wiring closets, and service provider transport applications.
High-performance 850nm Multi-Mode SFP+ transceiver.
- Enhanced Small Form-Pluggable (SFP+) form factor
- Hot pluggable
- Support 10G Ethernet
- Feature Digital Diagnostics Monitoring (DDM)
- RoHS Compliant
- Compliant with MSA (Multiple Source Agreement)
- Compliant with IEEE802.3ae and 802.3aq standards
Specifications
| Hot Pluggable | Yes |
|---|---|
| MSA Compliant | Yes |
| RoHS Compliant | Yes |
| Compliant Standard | IEEE-802.3ae 10GBASE-SR |
| Transceiver Type | SFP+ |
| Fiber Channel FC-PI standard | 1200-Mx-SN-I |
| Fiber Media support | Multi-Mode |
| Distance | 62.5μm, 160 MHz-km: 26m 62.5μm, OM1 200 MHz-km: 33m 50μm, 400 MHz-km: 66m 50μm, OM2 500 MHz-km: 82m 50μm, OM3 2000 MHz-km: 300m |
| Speed | 10Gbps |
| connector | Duplex LC Connector |
| single/bi Direction | single-direction |
| Wavelength | 850 nm |
| Output Optical Power (TX Optical Power) | MAX:-1 dBm |
| Interface | MIN.: -11.1 dBm |
| Input Optical Power (RX Optical Power) | MAX.: -1 dBm |
| Sensitivity | -11.1 dBm |
| Cable Type | multi-mode 50/125um or 62.5/125um fiber |
| Power | 3.3V |
| Max Input Current | 3.3V: 300mA |
| Power Budget (MIN Power Budget) | 4.6dB |
| MAX Power Budget | 10.1dB |
| Heat Generated | 3.6KJ/H |
| MTBF (hours) | 3,960,000 |
| Operation Temperature | 0°～70°C |
| Storage Temperature | -40°～85°C |
| Humidity (Operating) | 5% ~ 85% |
| Humidity (Storage) | 5% ~ 95% |
| Dimension ( W x D x H ) | Comply with SFF8432 14.8 x 56.5 x 11.85 mm |
| Weight | 18g |
| EMI: | CE, FCC, VCCI |
| Safety: | UL, TUV, CDRH |
| Hardware version | A1 |
