AC1752
1 Year Warranty
1080p HD

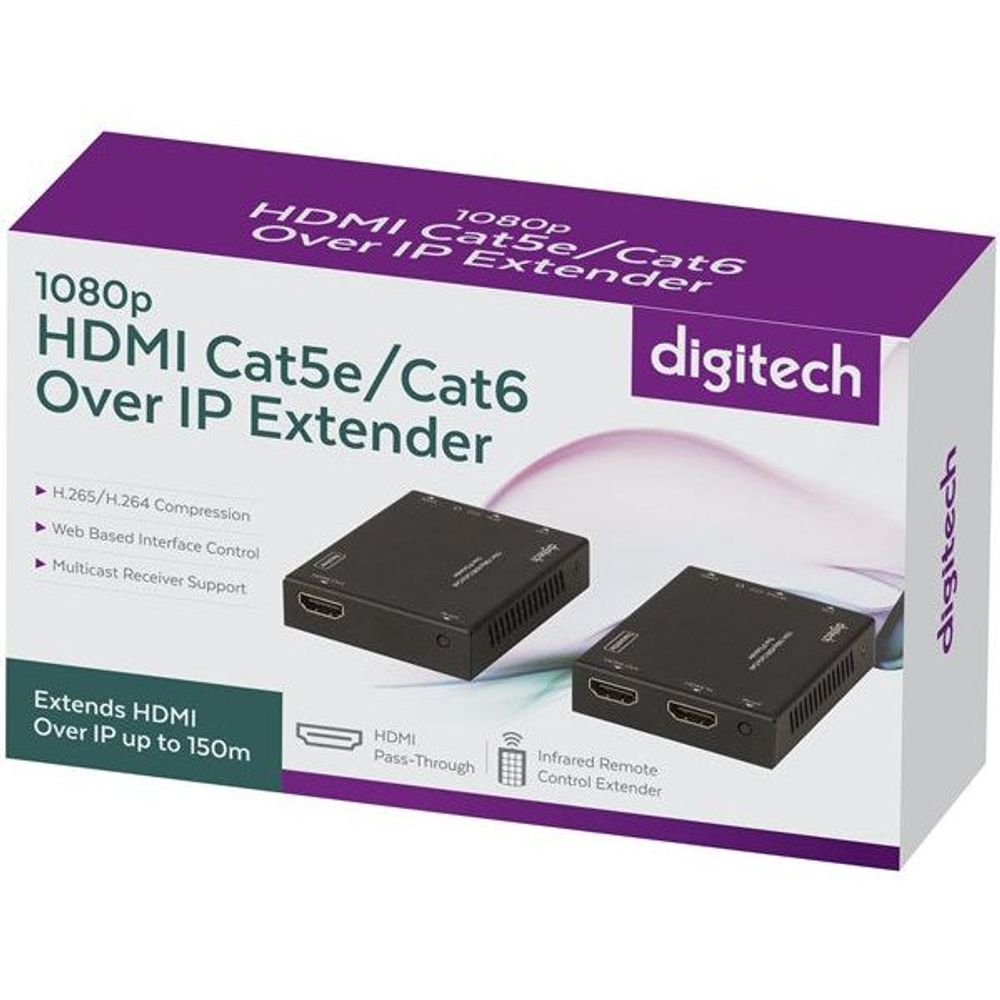

Send high definition AV signals to a screen in another room up to 150m away using a Cat5e/6 cable through a common router or Ethernet switch. A sender and receiver with power supplies are included, and additional receivers are available separately (AC1753) to share the same AV signal to additional screens.
Setup is straightforward using the TCP/IP protocol which is used for computer networking and no software is required. Simply connect the receiver and sender into your gigabit network using Cat5e or Cat6 leads (not included) or directly with one long Cat5e or Cat6 cable (not included).
Features an HDMI loop output, is compatible up to HDMI 1.3 with up to 6.75Gbps bandwidth, and compliant to HDCP 1.4b. It even allows you to use your infrared remote control from the receiving point, so you can control the device you’re sending video from! It comes with an infrared extension too, so you can take your remote control with you and still control the remote device. Includes infrared emitter, infrared receiver and two mains power adaptors.
Features:
- 100m (Cat5e), 150m (Cat6) Transmission Distance
- Web Based Interface Control
- HDMI Pass-Through
- Multicast Receiver Support
- Infrared Remote Control Extender
Specifications
Specifications
| Digital Audio Format : LPCM |
| Maximum Signal Frequency : 48kHz |
| Maximum Channel Support : 2ch |
| Dimension details : Sender Dimensions |
| Width : 61mm |
| Height : 17mm |
| Depth : 86mm |
| Weight : 155g |
| PSU Powers : Transmitter |
| DC Plugpack Voltage : 5V, 5V |
| DC Current Draw : 1A, 1A |
| Item Connection : Barrel Plug |
| PSU Powers : Receiver |
| DC Plugpack Voltage : 5V |
| DC Current Draw : 1A |
| Item Connection : Barrel Plug |
| Packaged Volume : 2.28l |
| Packaged Weight : 0.58kg |
| Packaged Length : 22.5cm |
| Packaged Width : 13.5cm |
| Packaged Height : 7.5cm |
| Resolution Frequency : 60Hz, 60Hz |
| HDMI Version : 1.3 |
| HDMI Maximum Data Rate : 6.75Gb/s, 6.75Gb/s |
| HDMI Maximum Colour Depth : 8b |
| HDMI Colour Space Compatibility : RGBYCbCr 4:4:4YCbCr 4:2:2 |
| HDCP Version : 1.4b |
| Maximum Horizontal Resolution : 1Pixel |
| Maximum Vertical Resolution : 1Pixel |
| Compliant with : H.264 and H.265 Compression |
| Switcher/Converter Type : Balun Extender |
| Input type : HDMI |
| Number of inputs : 1pc |
| Dimensions details : Receiver Dimensions |
| Width : 86mm |
| Height : 17mm |
| Depth : 61mm |
| Weight : 150g |
| Signal Type : HDMI |
| Input Connection : HDMI Type-A |
| Connecting Cable : Cat5e UTPCat6 UTP |
| Connecting Cable Termination : RJ45 |
| Maximum Distance Between Baluns (cat5e) : 100m, 100m |
| Maximum Distance Between Baluns (cat6) : 150m, 150m |
| Output Connection : HDMI Type-A |
| IR Signal Fequency Compatibility : 60kHz, 60kHz |
| Availability : Stocked item |
