ZM9124 - 12V 200W Blanket Solar Panel with Accessories

PowertechSKU: ZM9124

Sale price$559.00 NZD

Tax included

In stock

Expected Delivery Times

North Island - 2-6 Working Days

South Island - 3-10 Working Days

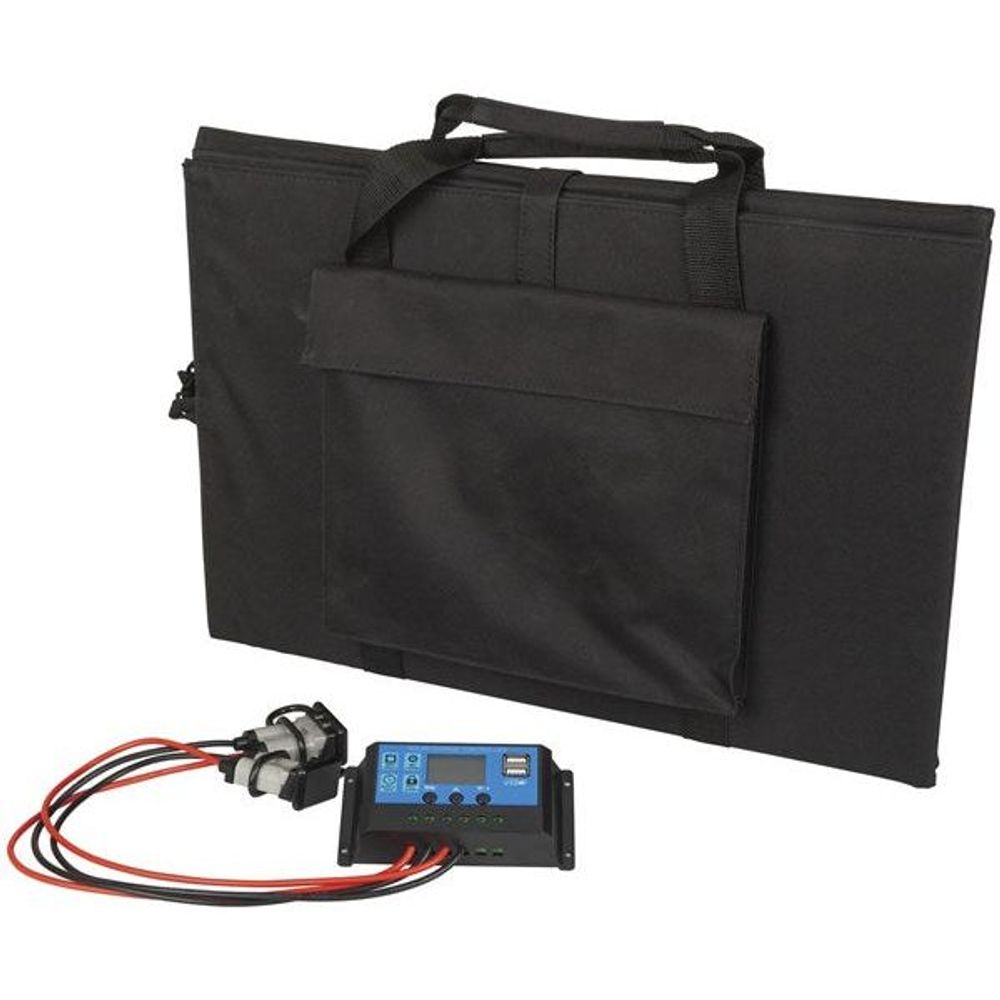

ZM9124 1 Year Warranty Blanket solar panels are much lighter and take up less space compared to traditional fold-up solar panels. This 12V 200W solar panel weighs just 6.8kg. When not in use, it folds down to just 512mm wide by 360mm high, small enough to easily stow away in a storage cupboard. When you want to use it, simply unfold and lay on the ground or across your car’s windscreen. A charge controller is included, so you can connect directly to a GEL, flooded or SLA battery without any additional hardware. The charge controller also includes a 2A USB charging outlet, perfect for charging mobile phones, tablets, and other devices in an emergency. Built with high grade monocrystalline solar panels, and safety features including short circuit, open circuit, reverse polarity, overload, and dual MOSFET reverse current protection. A carry bag is supplied with a built-in pouch for accessory storage.  Features: • 3-stage PWM charge management • USB 2A USB Port Charger Specifications: Solar Charge Controller System Voltage: 12/24V Auto Battery Equalisation: Sealed: 14.4V GEL: 14.2V Flood: 14.6V Float Charge: 13.7V (Default, Adjustable) Discharge Stop: 10.7V (Default, Adjustable) Discharge Reconnect: 12.6V (Default, Adjustable) USB Output: 5V, 2A Self-Consumption: <10mA Operating Temperature: -35 ~ 60°C







Packaged Volume : 20.2l
Packaged Weight : 7.4kg
Packaged Length : 54.8cm
Packaged Width : 54.2cm
Packaged Height : 6.8cm
Width : 1070mm
Height : 1032mm
Weight : 6.2kg
Dimension details : Solar Panel Dimensions - Unfolded
Continuous Power : 200W
Solar panel type : Monocrystalline
Mounting Method : Folding Portable
Open Circuit Voltage : 23.7V
Short Circuit Current : 9.8A
Voltage at Power Max : 18V
Current at Power Max : 9.5A
Width : 134mm
Height : 34mm
Depth : 70mm
Weight : 154g
Dimensions details : Charge Controller Dimensions
Width : 512mm
Height : 360mm
Dimension details : Solar Panel Dimensions - Folded
Max PV Open Circuit Voltage : 48V
Max Charging Current : 20A
Max Load Current : 20A
Charge Controller Technology : Pulse Width Modulated (PWM)
Availability : Stocked item
