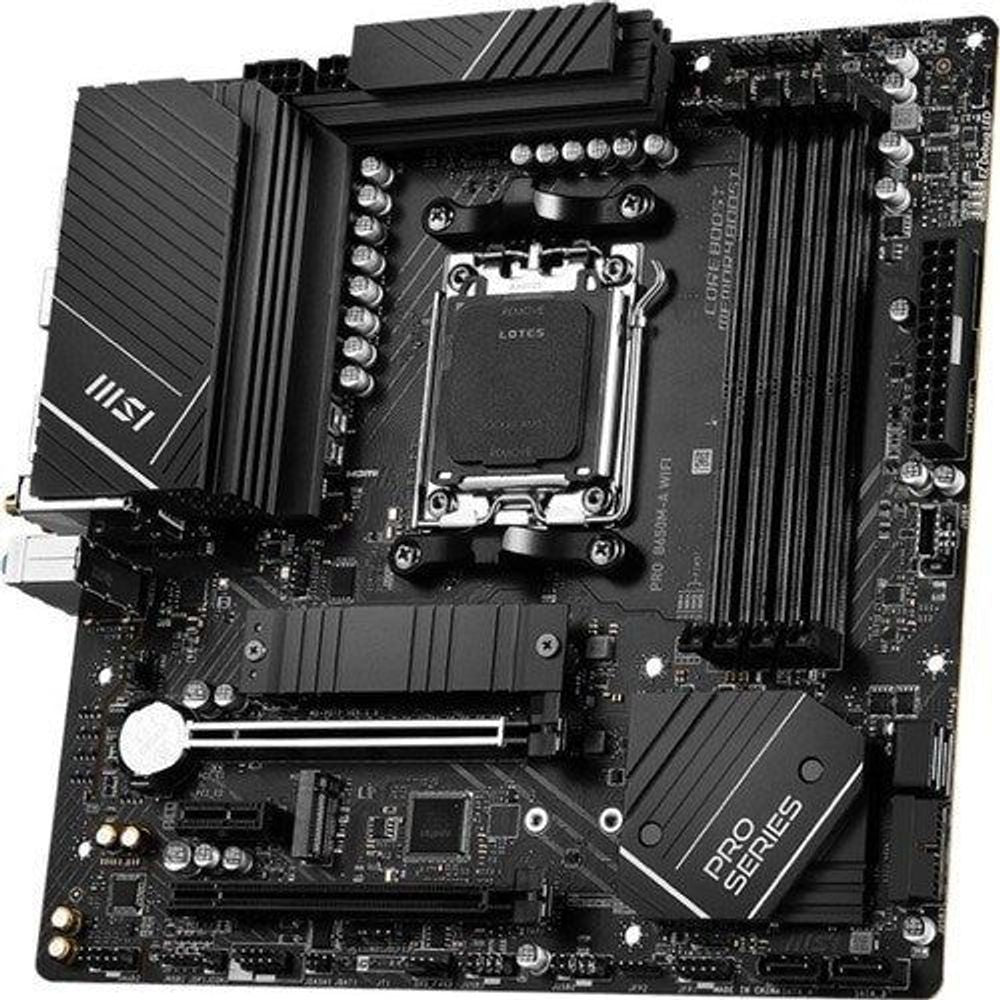

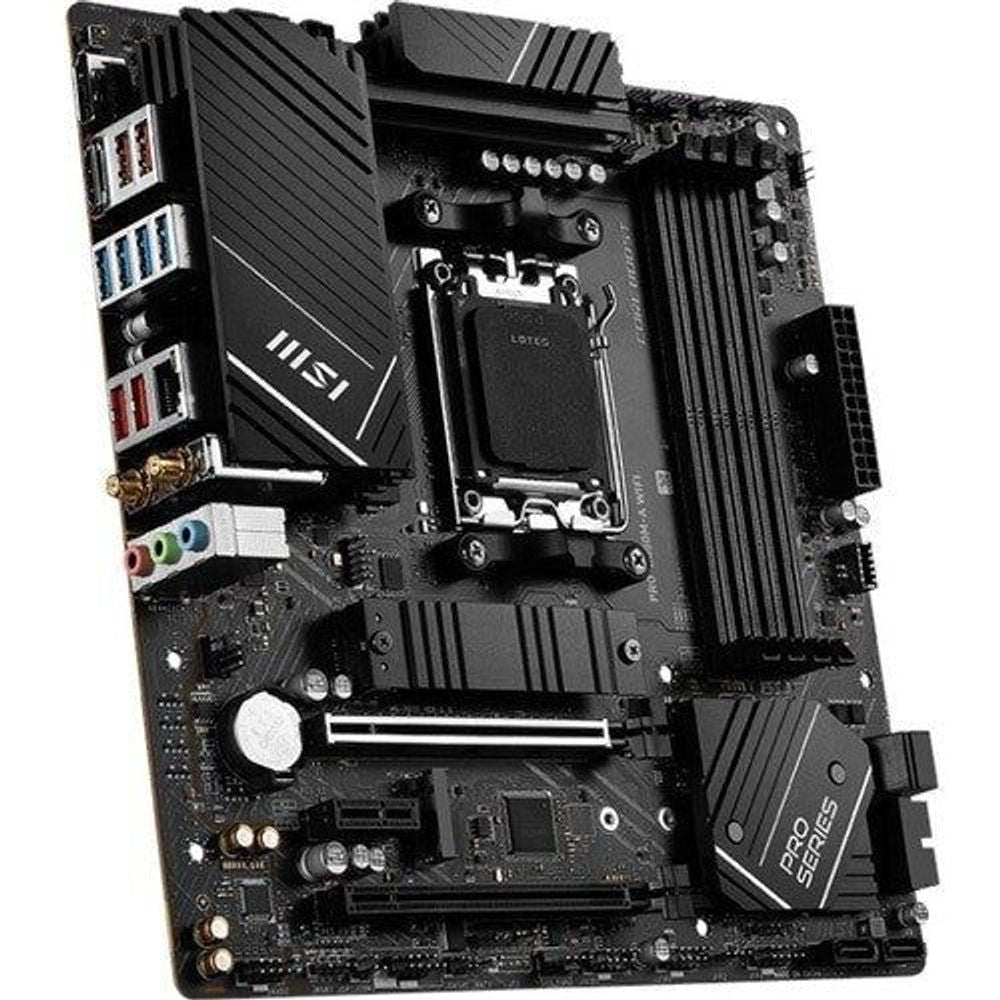

Name: MSI Pro B650M-A WIFI Gaming Desktop Motherboard - AMD B650 Chipset - S
Brand: MSI
SKU: PRO B650M-A WIFI
Price: 296.20 NZD
Availability: OutOfStock

MSI Pro B650M-A WIFI Gaming Desktop Motherboard - AMD B650 Chipset - S

MSI Pro B650M-A WIFI Gaming Desktop Motherboard - AMD B650 Chipset - S

PRO B650M-A WIFI

$296.20

Tax included.

Select quantity

Description

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr

Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Chipset Heatsink

The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED,
HEAVY SOLDERED CONNECTIONS

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Features

Compatible Ryzen 7 processor lets you perform all your computational tasks at a swift pace
DDR5 SDRAM slot for convenient installation of memory
Supported 0 RAID levels provide data reliability and fault tolerance
Enjoy the freedom of wireless connectivity and get the devices connected faster with IEEE 802.11 a/b/g/n/ac/ax wireless standard support
HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
Micro ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability

Specifications

Audio

Audio Channels

7.1

Miscellaneous

Brand Compatibility

AMD

Video

Onboard Video

CPU Dependent Video

Physical Characteristics

Form Factor	Micro ATX
Width	243.8 mm
Depth	243.8 mm

Onboard Interfaces

Number of SATA Interfaces	4
Total Number of Onboard USB Ports	7
Number of Onboard USB 2.0 Ports	4
Number of M.2 Interfaces	2

I/O Controller

RAID Levels	0
	10
	1
Controller Type	Serial ATA/600
RAID Supported	Yes

Processor & Chipset

Processor Supported	Ryzen 7
Total Processor Supported	1
Processor Socket	Socket AM5
Chipset Manufacturer	AMD
Chipset Model	B650

Memory

Maximum Memory Supported	128 GB
Memory Technology	DDR5 SDRAM
Number of Memory Slots	4
Memory Form Factor	UDIMM
Memory Form Factor	DIMM
Memory Speed Supported	6200 MHz
	6400 MHz
	6000 MHz
	5800 MHz
	5000 MHz
	5200 MHz
	5600 MHz
	5400 MHz
	4800 MHz

I/O Expansions

Number of PCI Express x1 Slots	1
Number of Total Expansion Slots	3
Number of PCI Express x16 Slots	2
PCI Express Standard	PCI Express 3.0
PCI Express Standard	PCI Express 4.0
Total Number of PCI Express Slots	3

Network & Communication

Bluetooth	Yes
Gigabit Ethernet	Yes
Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Standard	Bluetooth 5.2
2.5Gigabit Ethernet	Yes

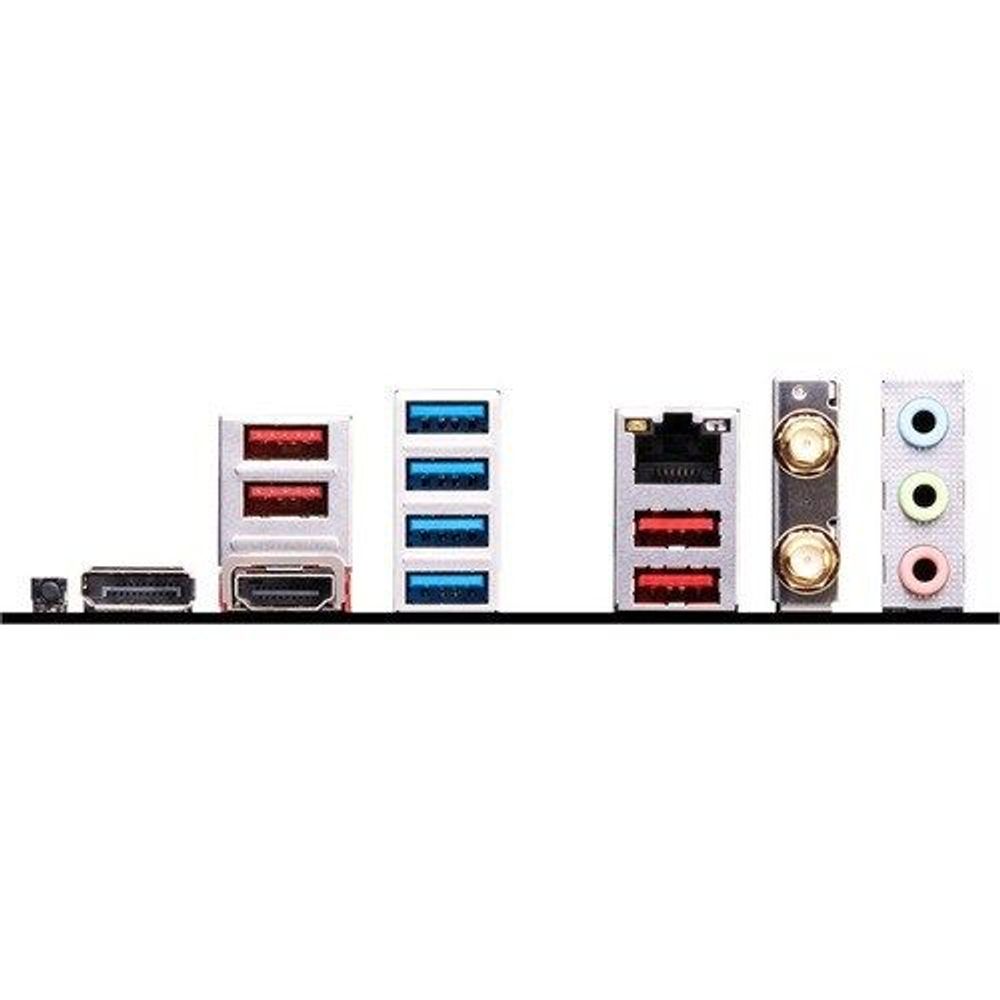

Interfaces/Ports

HDMI	Yes
HDMI Version	2.1
Number of Network (RJ-45) Ports	1
DisplayPort	Yes
Total Number of USB Ports	8
Number of USB 3.2 Gen 1 Type-A Ports	4
Number of USB 3.2 Gen 2 Type-A Ports	4

General Information

Product Type	Gaming Desktop Motherboard
Manufacturer Part Number	PRO B650M-A WIFI
Manufacturer Website Address	http://www.msi.com
Manufacturer	MSI
Product Model	Pro B650M-A WIFI
Product Name	PRO B650M-A WIFI Gaming Desktop Motherboard
Product Series	PRO
Brand Name	MSI

Warranty

Brand

MSI

Restock ETA (if applicable)

Product Details

Specifications

MSI
HeadingMSI Pro B650M-A WIFI Gaming Desktop Motherboard - AMD B650 Chipset - S

Description

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr

Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Chipset Heatsink

The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED,
HEAVY SOLDERED CONNECTIONS

Features

Compatible Ryzen 7 processor lets you perform all your computational tasks at a swift pace
DDR5 SDRAM slot for convenient installation of memory
Supported 0 RAID levels provide data reliability and fault tolerance
Enjoy the freedom of wireless connectivity and get the devices connected faster with IEEE 802.11 a/b/g/n/ac/ax wireless standard support
HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
Micro ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability

Specifications

Audio

Audio Channels

7.1

Miscellaneous

Brand Compatibility

AMD

Video

Onboard Video

CPU Dependent Video

Physical Characteristics

Form Factor	Micro ATX
Width	243.8 mm
Depth	243.8 mm

Onboard Interfaces

Number of SATA Interfaces	4
Total Number of Onboard USB Ports	7
Number of Onboard USB 2.0 Ports	4
Number of M.2 Interfaces	2

I/O Controller

RAID Levels	0
	10
	1
Controller Type	Serial ATA/600
RAID Supported	Yes

Processor & Chipset

Processor Supported	Ryzen 7
Total Processor Supported	1
Processor Socket	Socket AM5
Chipset Manufacturer	AMD
Chipset Model	B650

Memory

Maximum Memory Supported	128 GB
Memory Technology	DDR5 SDRAM
Number of Memory Slots	4
Memory Form Factor	UDIMM
Memory Form Factor	DIMM
Memory Speed Supported	6200 MHz
	6400 MHz
	6000 MHz
	5800 MHz
	5000 MHz
	5200 MHz
	5600 MHz
	5400 MHz
	4800 MHz

I/O Expansions

Number of PCI Express x1 Slots	1
Number of Total Expansion Slots	3
Number of PCI Express x16 Slots	2
PCI Express Standard	PCI Express 3.0
PCI Express Standard	PCI Express 4.0
Total Number of PCI Express Slots	3

Network & Communication

Bluetooth	Yes
Gigabit Ethernet	Yes
Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Standard	Bluetooth 5.2
2.5Gigabit Ethernet	Yes

Interfaces/Ports

HDMI	Yes
HDMI Version	2.1
Number of Network (RJ-45) Ports	1
DisplayPort	Yes
Total Number of USB Ports	8
Number of USB 3.2 Gen 1 Type-A Ports	4
Number of USB 3.2 Gen 2 Type-A Ports	4

General Information

Product Type	Gaming Desktop Motherboard
Manufacturer Part Number	PRO B650M-A WIFI
Manufacturer Website Address	http://www.msi.com
Manufacturer	MSI
Product Model	Pro B650M-A WIFI
Product Name	PRO B650M-A WIFI Gaming Desktop Motherboard
Product Series	PRO
Brand Name	MSI
