Description
VIGI C240I
VIGI 4MP IR Dome Network Camera- 4MP Super-High Definition: The VIGI C240I camera comes with 4MP — more than enough pixels to pick up some of the more discrete details.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
- IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve the quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
- PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
- 4mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimetre lens for longer distances in open spaces, C240I comes with two different lens types to better suit your security needs.
- Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
Looking for a higher resolution? It's right here.
4MP Super-High Definition
The VIGI C240I camera comes with 4MP—more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

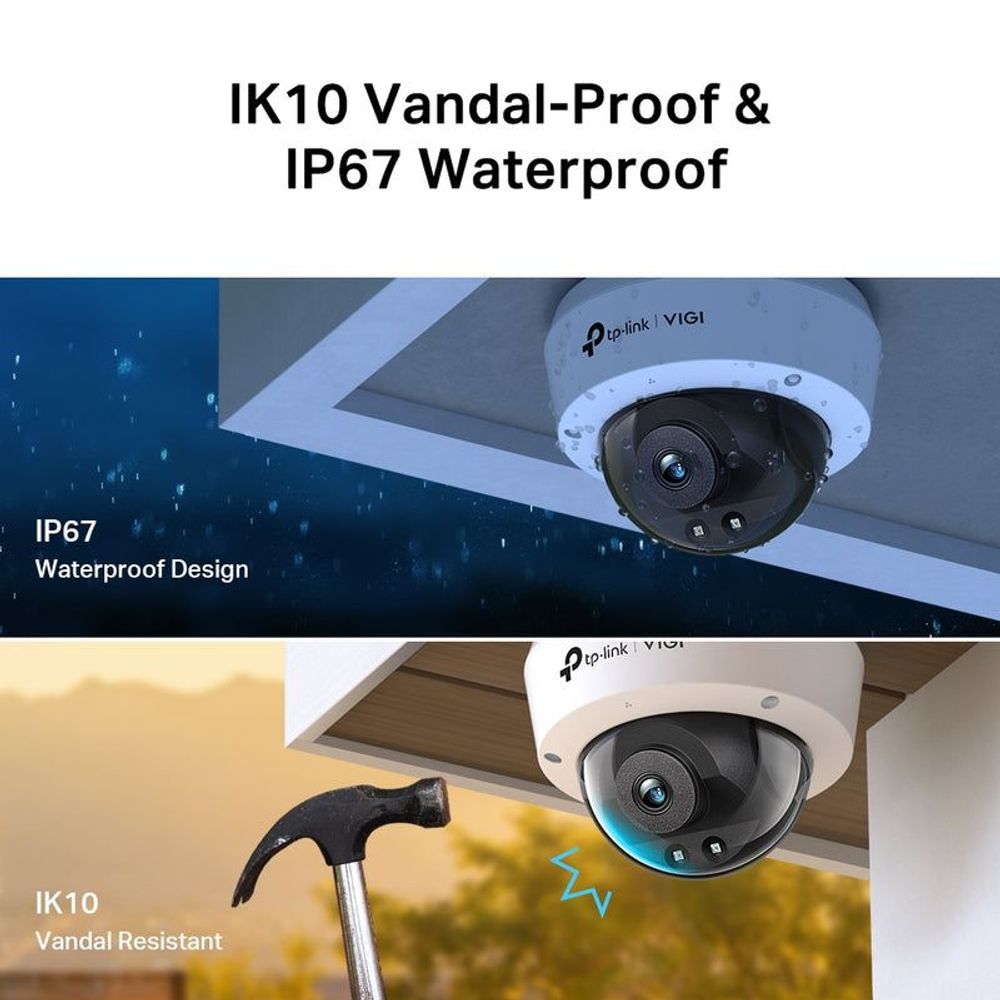

IK10 Vandal-Proof & IP67 Waterproof
With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.

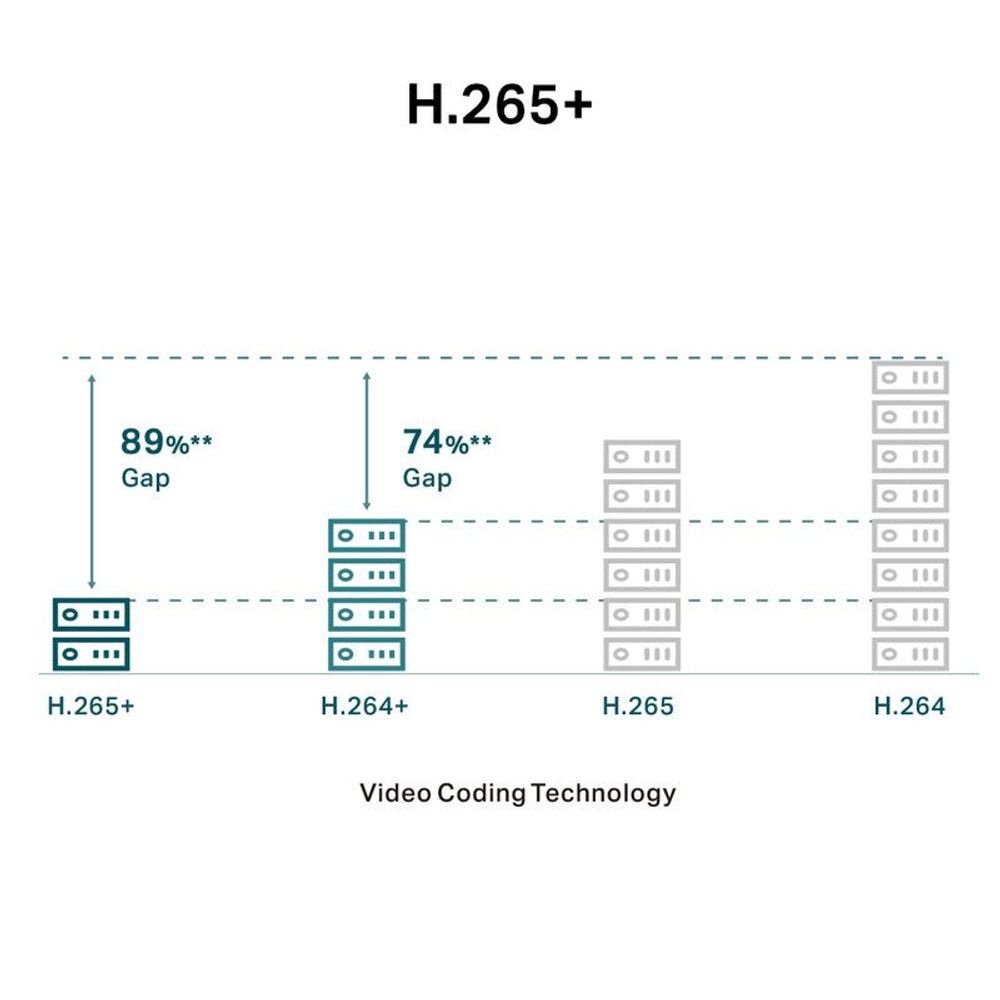

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
**Calculations based on laboratory testing using a 3MP VIGI camera, and actual performance may vary according to the amount of activity recorded, resolution and other variables.
Never miss a detail.
SmartVid-Smart Video Enhancement
VIGI’s professional technologies process videos to greatly improve their quwhichy that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
Discover the best way to power your camera.
PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
Choose the right lens for your security.
2.8/4 mm Lens
Whether you need a wide-angle lens to cover enclosed spaces like elevators or a higher millimetre lens for longer distances in open spaces like parking lots, C240I comes with two different lens versions to better suit your security needs.
Flexible Management
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
CAMERA | |
---|---|
Image Sensor | 1/3” Progressive Scan CMOS |
Minimum Illumination | Color: 0.1 Lux; 0 Lux with IR |
Day/Night Mechanism | IR Cut Filter |
Lens | 2.8 mm/ 4 mm |
Aperture | 2.8 mm: F2.2 4 mm: F2.2 |
Lens Mount | M12 |
Viewing Angle | 2.8mm: 88.8°/48.9°/106.5°(H/V/D) 4mm: 75.1°/41.5°/88.7°(H/V/D) |
IR Working Distance | 30m |
Weatherproof Rating | IP67 |
Digital Noise Reduction | 3D DNR |
WDR | DWDR |
NETWORK | |
---|---|
Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
API | ONVIF |
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
INTERFACES | |
---|---|
Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
Button | - |
Video Output | - |
GENERAL | |
---|---|
Package Contents | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
Operating Temperature | -30–60 °C |
Dimensions( H X W X D ) | 115 × 115 × 86 mm |
Material | Plastic |
General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0) |
Power Consumption | 12V DC: Max 5W PoE: Class 0 |
Vandal Resistant | IK10 |
Certifications | CE/BSMI/VCCI/ONVIF |
VIDEO/IMAGE | |
---|---|
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
Frame Rate & Resolutions | Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720 Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480,352x288, 320x240 |
Max. Resolution | 4MP (2560 × 1440) |
Video Streaming | Main Stream Sub-Stream |
Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) |
Image Enhancement | BLC/3D DNR/HLC/SmartIR |
Video Bit Rate | 64 Kbps to 4 Mbps |
Day/Night Switch | Day/Night/Auto/Schedule |
SMART FEATURE-SET | |
---|---|
Smart Event | Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
Basic Event | Motion Detection, Camera Tampering Detection, Exception (Illegal Login) |
Linkage Method | Trigger Notification: ONVIF, HTTPS |
Region of Interest | 1 Region |
