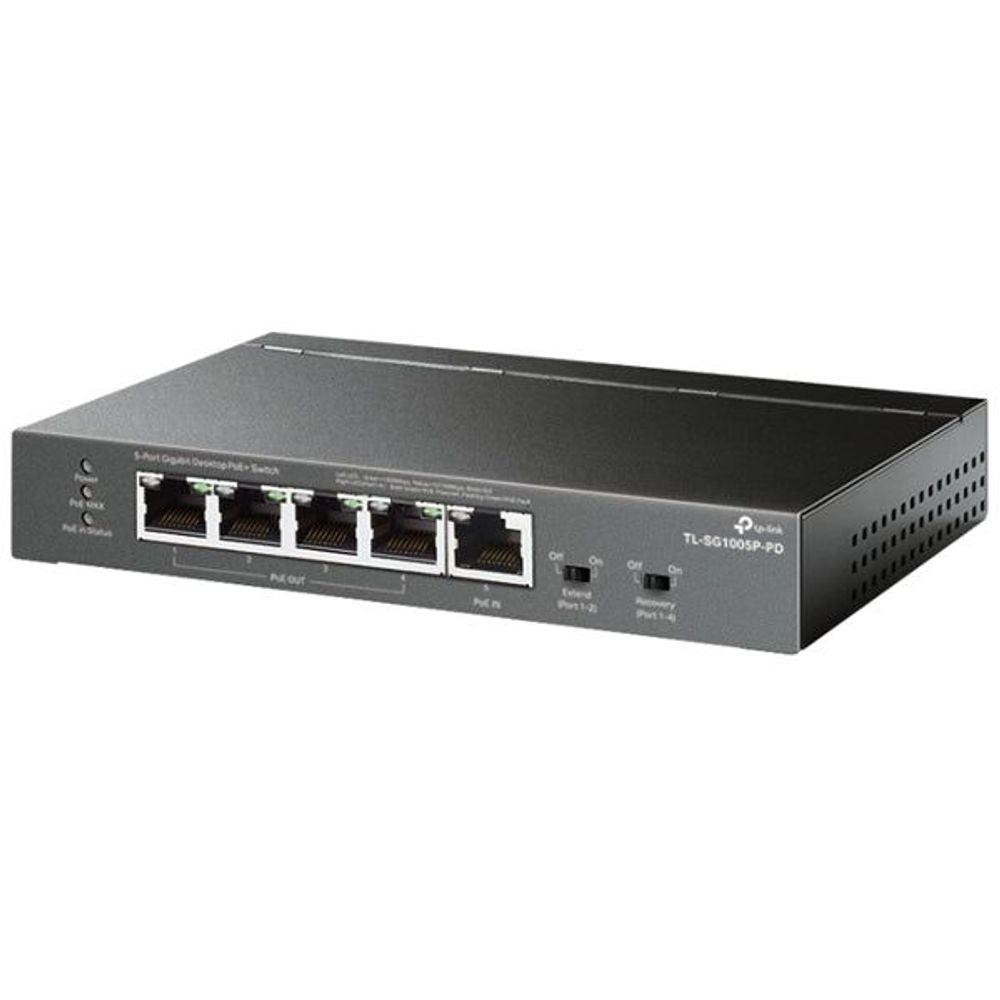

Name: TL-SG1005P-PD - TP-Link SG1005P-PD 5 Port Gigabit Switch PoE Powered
Brand: TP-Link
SKU: TL-SG1005P-PD
Price: 87.86 NZD
Availability: InStock

TL-SG1005P-PD - TP-Link SG1005P-PD 5 Port Gigabit Switch PoE Powered

TL-SG1005P-PD

$87.86

Tax included.

3 items available

Select quantity

Description

Specifications

Device Type	5 Port Gigabit Desktop Switch
Interface	5× 10/100/1000Mbps RJ45 Ports 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4) 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at) AUTO Negotiation AUTO MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
PoE Ports (RJ45)	PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4 PoE Out Ports: Ports 1-4, compliance with 802.3af/at PoE Power Budget: -66 W when powered by 802.3bt Type 4 (90 W) -47 W when powered by 802.3bt Type 3 (60 W) -21 W when powered by 802.3at (30 W) -9 W when powered by 802.3af (15.4 W)
Fan Quantity	Fanless
Dimensions (mm)	158 × 101 × 25 mm

60 Month Warranty
