Name: MM2012 - 24V, 72VA, 3A - Single Winding - Type 2158 Transformer
Brand: Powertech
SKU: MM2012
Price: 40.90 NZD
Availability: InStock

MM2012 - 24V, 72VA, 3A - Single Winding - Type 2158 Transformer

MM2012 - 24V, 72VA, 3A - Single Winding - Type 2158 Transformer

MM2012

$40.90

Tax included.

Select quantity

Description

Features

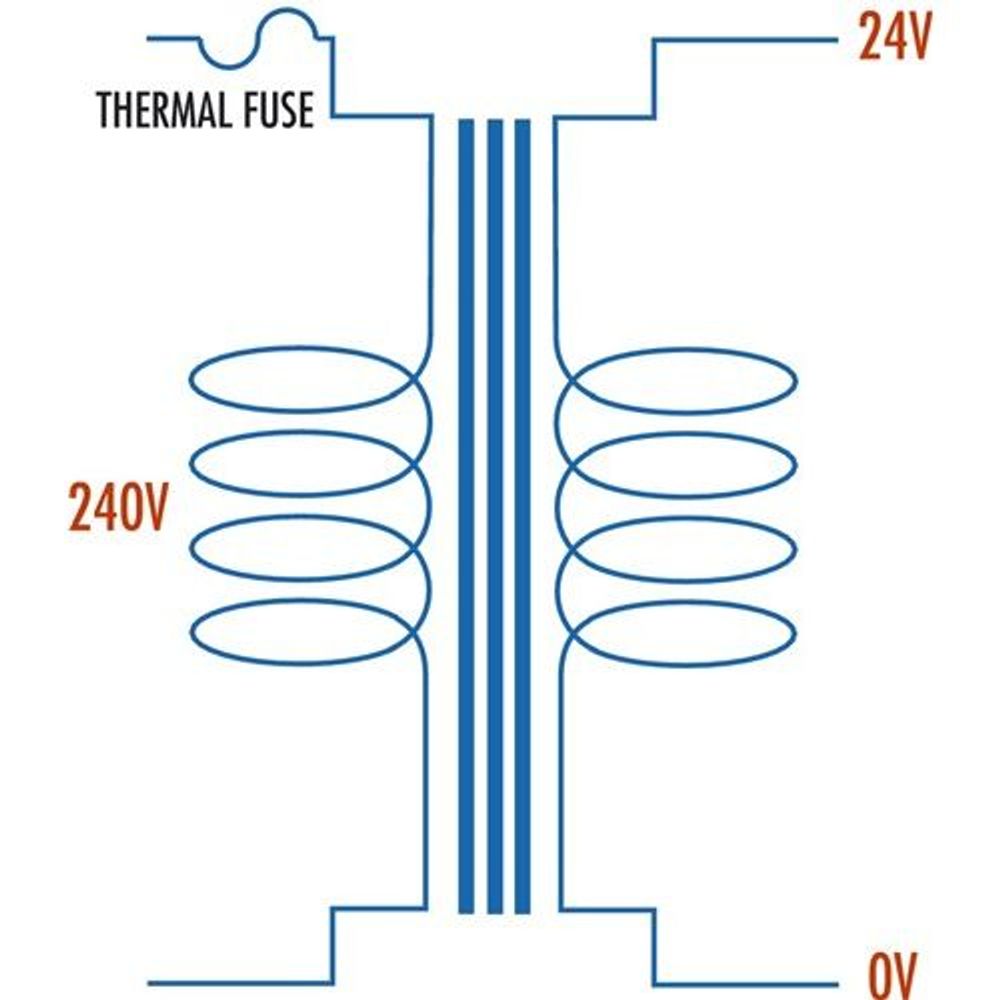

MM2012 240V Mains PowerTraditional laminated iron core transformers suitable for new projects, hobby projects or as a replacement in existing equipment. They have a thermal fuse built into the primary winding for added safety and a wide variety is available to suit your specific needs. • Primary Connection: 200mm Fly Leads

Specifications

AC current rating : 3A

AC Voltage rating : 24V

Weight : 1300g

Mains Voltage Range : 240V

Rated for AU Mains : true

Max Input Power : 72VA

Packaged Volume : 0.45l

Packaged Weight : 1.3kg

Packaged Length : 10cm

Packaged Width : 7.5cm

Packaged Height : 6cm

Type of Transformer : Laminated Core

Case Type : 2158

Primary Winding Connection : Flyleads

Secondary Winding Connection : Flyleads

Secondary Winding Configuration : Single Output

Temperature Rise Above Ambient at Rated Power : 65°C

Regulation : 10%

Core Material : Laminated Iron

Magnetising Current : 60mA

Thermal Fuse : true

Mount Spacing (A) : 82mm

Core Winding Depth (D) : 76mm

Case Length (L) : 69mm

Case Width (W) : 48mm

Case Height (H) : 59mm

Type of converter or transformer : laminated/toroidal transformer

Availability : Stocked item
