Name: E493782 - Elo 2494L 23.8 Inch Open-Frame Touchscreen Monitor with PCAP Touch
Brand: Elo
SKU: 701987
Price: 2649.00 NZD
Availability: OutOfStock

E493782 - Elo 2494L 23.8 Inch Open-Frame Touchscreen Monitor with PCAP Touch

701987

$2,649.00

Tax included.

Select quantity

Description

701987

3 Year Warranty

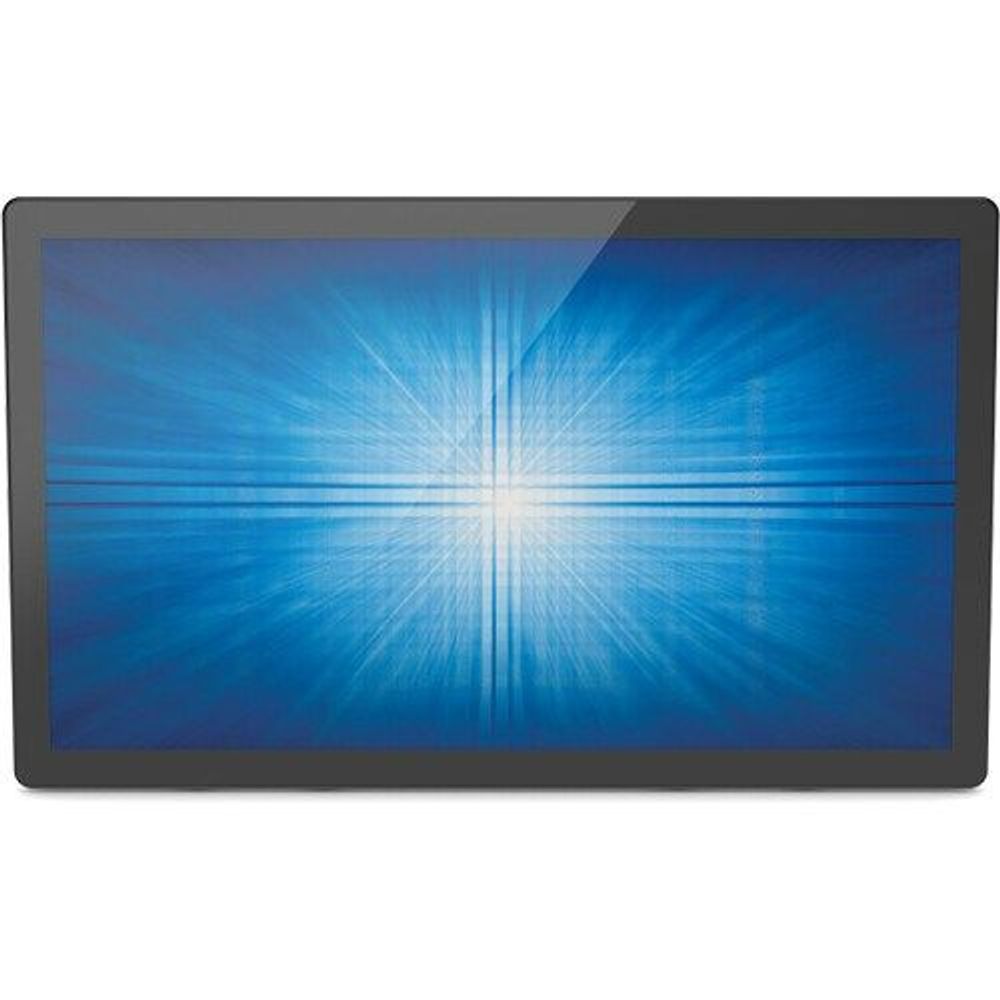

The Elo 2494L 24-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.

Our TouchPro® PCAP technology supports touch through functionality for installations that require a front layer of glass with thickness’s up to 6mm or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.

Specifications:

• Touch Technology & Capacity: PCAP (TouchPro® Projected Capacitive) - 10 Touch

• Diagonal Size: 23.8" diagonal, Active matrix TFT LCD (LED)

• Aspect Ratio: 16:9

• Active Area: 527.04 x 296.46mm

• Resolution: 1920x1080

• Horizontal Viewing Angle: ±89° or 178° total

• Vertical Viewing Angle: ±89° or 178° total

• Number of Colors: 16.7 million

• Brightness (typical) LCD panel: 250 nits

• Brightness (typical) TouchPro PCAP: 225 nits

• Response Time-total (typical): 16ms

• Contrast Ratio: 3000:1

• Input Video Format: HDMI, VGA, or DisplayPort

• Touch Interface: USB

• Input Voltage: 12VDC (PSU NOT included)

• Input Connector: DC Jack Pin OD: 2.0mm, Barrel ID: 6.4mm, Barrel len 8.8mm

• Power Consumption On: 27.3 W

• Power Consumption Sleep: 1.5 W

• Power Consumption Off: 0.5W

• Enclosure Colour: Black

• Operating Temperature: 0°C to 40°C

• Humidity: Operating: 20% to 80%

• Sealability: Touchscreen sealed to bezel, Touchscreen sealed to LCD

• Mounting Options: 200x100mm VESA mount on rear with 4-hole mounting interface on all four sides.

• Monitor Dimensions (PCAP): 569.2(W) x 341.1(H) x 37(D)mm

• Monitor Dimensions (Bezel): 562.4(W) x 326.6(H) x 41.7(D)mm

• Weight: 6.39kg

Specifications

Length : 569.2mm

Width : 341.1mm

Height : 38mm

Weight : 6.17g

Volume : 7.38ml

Packaged Volume : 60.31l

Packaged Weight : 8.07kg

Packaged Length : 69cm

Packaged Width : 46cm

Packaged Height : 19cm

Clear Spec : false
