Description
Overview
Wireless Controller

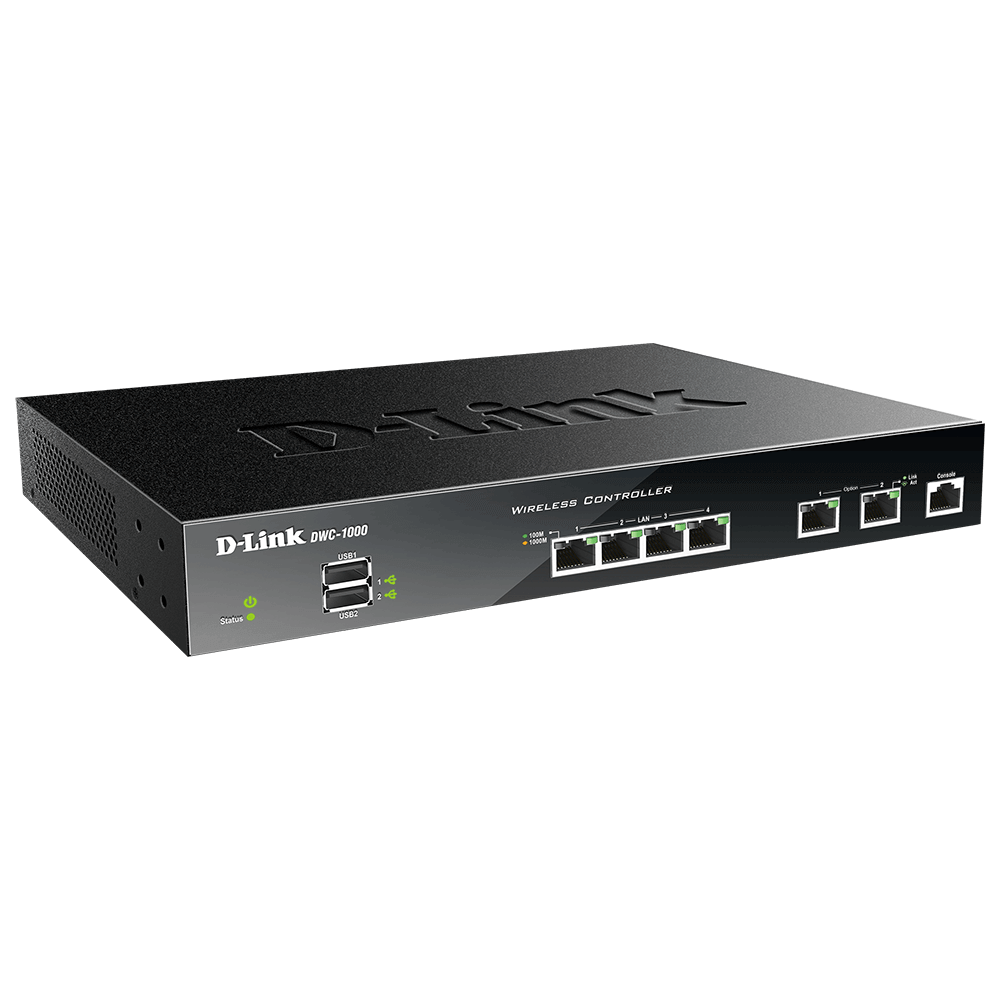

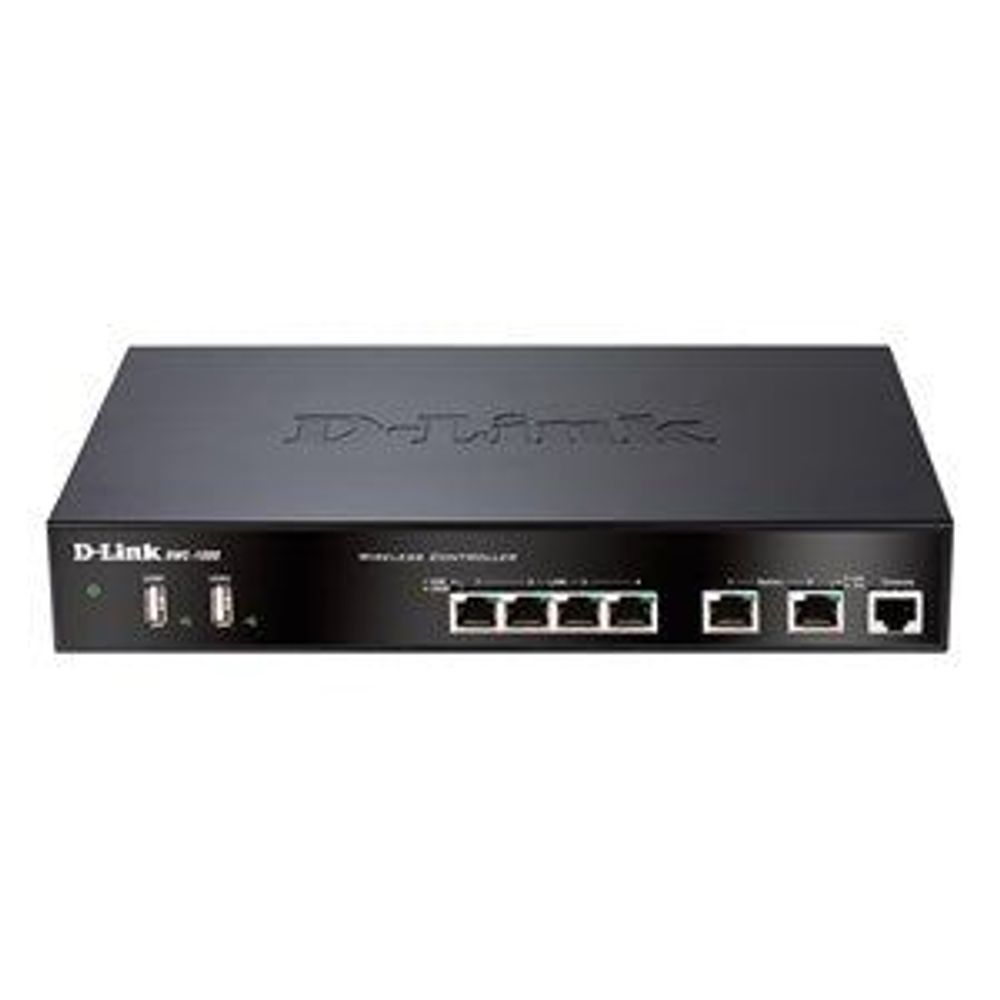

DWC-1000
Browse, stream and watch online in minutes at the fastest wireless speeds.
The D-Link DWC-1000 Wireless Controller is a centralized wireless LAN manager developed specifically for campuses, branch offices, and small-to-medium businesses (SMBs). With the ability to manage up to 12 wireless access points (upgradable to 66) and a maximum of 264 wireless access points in a controller cluster, the DWC-1000 is a cost-effective mobility solution for small to medium-size deployments. Its auto-managed AP discovery and single point management allow customers to acquire an enterprise-class system without the burden of maintaining massive and complex configurations.
Specifications
| 10/100/1000Base-T | 6 |
|---|---|
| Combo 10/100/1000Base-T/SFP | 0 |
| Console Port | RJ-45 |
| USB Port (2.0) | 2 |
| Maximum Access Points per unit (default/ upgrade*) | 12/66* |
| Maximum Access Points per cluster (default/ upgrade*) | 48/264* |
| AP Auto Discovery | Yes |
| AP Monitoring | Yes |
| AP Authentication by Local Database | Yes |
| AP Authentication by External RADIUS | Yes |
| Auto Channel Management | Yes |
| Auto Power Management | Yes |
| Centralized Firmware Upgrade | Yes |
| Remote AP Reboot | Yes |
| Visualization Management | Yes |
| Connection mode between controller and AP | Bridge and tunnel |
| Device Clustering | Yes |
| Device Clustering per Group | 4 |
| Configuration Push within Group | Yes |
| Captive Portal | Yes |
| External User Database - RADIUS | Yes |
| External User Database - POP3 | Yes |
| External User Database - LDAP | Yes |
| Local User Database | Yes |
| 802.1X | Yes |
| Client Classicification | Yes |
| Client Monitoring | Yes |
| Ad-hoc Client Monitoring | Yes |
| Location Tracking | Yes |
| L2 Fast Roaming | Yes |
| TKIP/AES Encryption | Yes |
| WPA/WPA2-Personal | Yes |
| WPA/WPA2-Enterprise | Yes |
| Rouge AP Detection & Mitigation | Yes |
| Rouge Client Detection & Mitigation | Yes |
| WLAN MAC Filtering | Yes |
| Hidden SSID | Yes |
| AP Classification | Yes |
| AP Station Isolation | Yes |
| WIDS | Yes |
| Wireless Multimedia (WMM) | Yes |
| 802.1p Priority Queues | Yes |
| CoS-based QoS | Yes |
| Per-flow Bandwidth Control | Yes |
| Per-port Traffic Shaping | Yes |
| Per-queue Minimum Bandwidth Guarantee | Yes |
| 802.1Q VLAN Tagging | Yes |
| 802.1V Subnet-based VLAN | Yes |
| MAC-based VLAN | Yes |
| Port-based VLAN | Yes |
| GVRP | Yes |
| Voice VLAN | Yes |
| Static VLAN | 255 |
| VLAN Numbers | 4,093 |
| Double VLAN (Q-in-Q) | Yes |
| Telnet Server | Yes |
| SNMP (v1,v2c,v3) | Yes |
| TFTP Server | Yes |
| NTP | Yes |
| DHCP Server | Yes |
| DHCP Relay | Yes |
| SYSLOG | Yes |
| SSH | Yes |
| HTTP | Yes |
| Command Line Interface (CLI) | Yes |
| Maximum Jumbo Frame (KB) | N/A |
| IPv4 Static Route | Yes |
| IPv6 Static Route | Yes |
| Routing Table Size | 100 |
| RIP v1/ v2 | Yes |
| OSPF | Yes |
| WAN Fail-over** | Yes |
| Firewall Policy | Yes |
| Numbers of Firewall Policy | 100 |
| Policy-based route | Yes |
| NAT, PAT | Yes |
| Outbound Load Balancing | Yes |
| Dynamic DNS | Yes |
| IPSec VPN Tunnel | 70 |
| PPTP / L2TP VPN Tunnel | 25 |
| IPSec Nat Traversal | Yes |
| Dead Peer Detection | Yes |
| VPN Tunnel Keep Alive | Yes |
| Hub and Spoke | Yes |
| SSL VPN Tunnel | 20 |
| Encryption Methods (DES/3DES/AES/Twofish/Blowfish/CAST-128/Null) | Yes |
| IP Encapsulating Security Payload (ESP) | Yes |
| IP Authentication Header(AH) | Yes |
| SSL Encryption Methods (DES/3DES/AES) | Yes |
| SSL Message Integrity (MD5/SHA1) | Yes |
| Static Web Content Filtering - Key word / URL | Yes |
| Dynamic Web Content Filtering ( Category) | Yes |
| Rackmount | 11-Inch |
| Dimension | 180 × 280 × 44 mm |
| Weight | 1.7kg |
| Operation Temperature | 0 ~ 40 °C |
| Storage Temperature | - 20 ~ 70 °C |
| Operation Humidity | 10% ~ 90% RH |
| Storage Humidity | 5% ~ 95% RH |
| Power Supply | AC：100 ~ 240 V, 50/60 Hz |
| Power Consumption | 17.20 W |
| Heat Dispassion | 58.69 BTU/hr |
| Acoustic | 0 dB (fanless) |
| MTBF | 260,000 hrs |
| FCC | Class B |
| CE | Class B |
| VCCI | Class B |
| C-Tick | Class B |
| BSMI | Class B |
| ICES-003 | Yes |
| Safety Certifications (cUL) | Yes |
| Safety Certifications (CB) | Yes |
| Safety Certifications (LVD (En60950-1) ) | Yes |
| AP License Upgrade | 6-AP/18-AP upgrade |
| Advanced Feature Lincense Upgrade | (1) Gateway function upgrade (VPN+Firewall+Router) (2) WCF funciton upgrade |
