Description
Overview
D-LINK DIS-100G-5SW 5-PORT GIGABIT INDUSTRIAL Switch WITH 4 1000BASE-T PORTS AND 1 SFP PORT- 4 x 100/1000Base-T ports, 1 x 100/1000BaseSFP slots
- Unmanaged plug-and-play simplicity
- Withstands extreme temperatures
- Certified for vibration, shock, free-fall, EMC
Unmanaged Plug and Play
Plug in and go. The DIS-100G-5SW reliably forwards Ethernet frames.
Gigabit Connectivity with SFP slot
Designed with 4 x 100/1000Base-T ports and 1 x 100/1000BaseSFP slot to suit a range of devices and network layouts.
Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-Switch comes with a 5-year D-Link warranty.
Fast Deployment

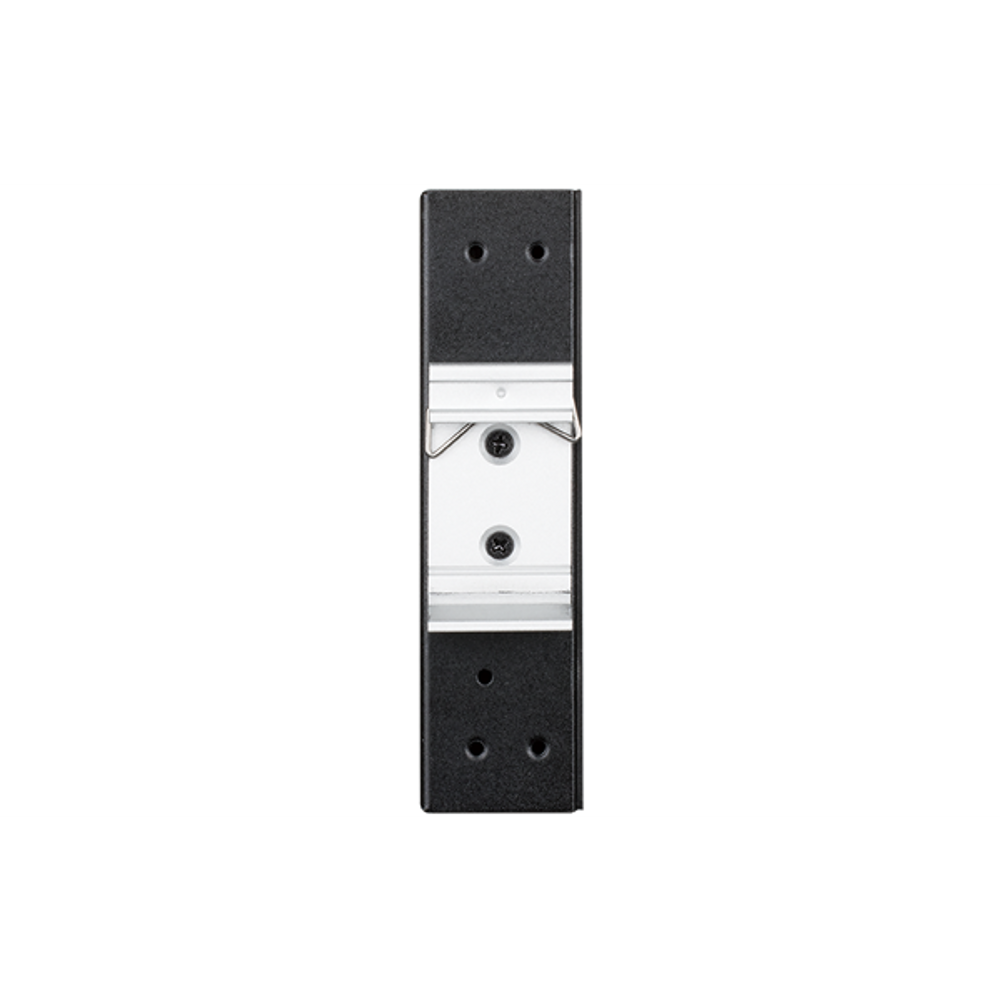

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 112.2 x 29.1 x 89.4 mm.
Specifications
| Switching Capacity : | 10 Gbps |
| DIN Rail Mountable : | Yes |
| Fans : | Fanless |
| Metal Housing : | Yes |
| MAC Address Table Size : | 2K |
| Management Options : | Unmanaged |
| PoE Type Required : | None |
| Power Input : | 12 to 58V DC terminal block dual input |
| SFP Ports : | 1 |
| Operating Temperature : | From -40° to 75°C |
| 1000BASE-T Ports : | 4 |
| Switch Series : | DIS Industrial Series |
