Name: MM2005 - 9-30V, 30VA, 1A Multi-Tapped - Type 2165 Transformer
Brand: Powertech
SKU: MM2005
Price: 40.90 NZD
Availability: InStock

MM2005 - 9-30V, 30VA, 1A Multi-Tapped - Type 2165 Transformer

MM2005 - 9-30V, 30VA, 1A Multi-Tapped - Type 2165 Transformer

MM2005

$40.90

Tax included.

Select quantity

Description

Features

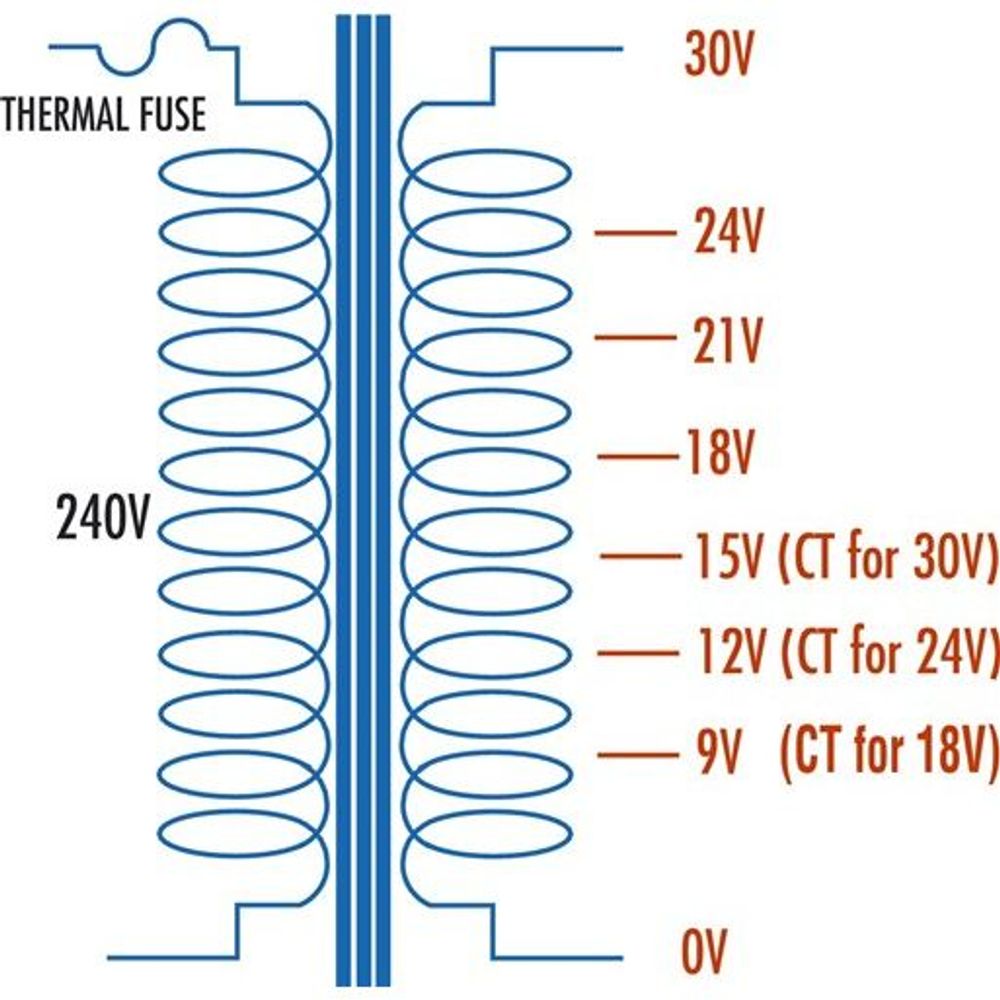

MM2005 240V Mains Power Traditional laminated iron core transformers suitable for new projects, hobby projects or as a replacement in existing equipment. They have a thermal fuse built into the primary winding for added safety and a wide variety is available to suit your specific needs. • Primary Connection: 200mm Fly Leads

Specifications

AC current rating : 1A

AC Voltage rating : 9V, 12V, 15V, 18V, 21V, 24V, 30V

Weight : 955g

Mains Voltage Range : 240V, 240V, 240V

Max Input Power : 30VA

Packaged Volume : 0.46l

Packaged Weight : 0.9kg

Packaged Length : 10.2cm

Packaged Width : 6.6cm

Packaged Height : 6.8cm

Type of Transformer : Laminated Core

Case Type : 2165

Primary Winding Connection : Flyleads

Secondary Winding Connection : Solder Tags

Secondary Winding Configuration : Multi-tapped

Number of Taps : 7pc

Temperature Rise Above Ambient at Rated Power : 60°C

Regulation : 8%

Core Material : Laminated Iron

Magnetising Current : 60mA

Mount Spacing (A) : 85mm

Core Winding Depth (D) : 65mm

Case Length (L) : 69mm

Case Width (W) : 35mm

Case Height (H) : 59mm

Type of converter or transformer : laminated/toroidal transformer

Availability : Stocked item
