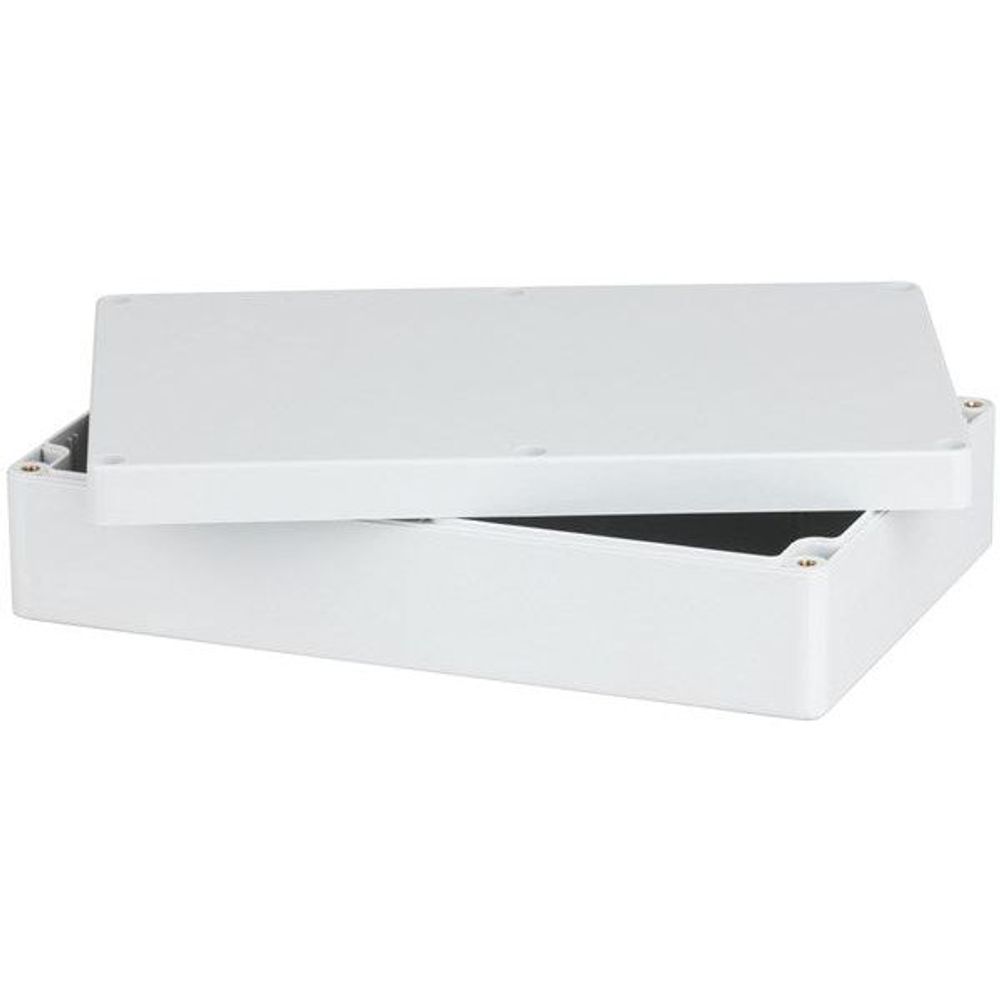

HB6220 - Sealed Polycarbonate Enclosure 222 x 146 x 55mm
HB6220 - Sealed Polycarbonate Enclosure 222 x 146 x 55mm
HB6220 - Sealed Polycarbonate Enclosure 222 x 146 x 55mm
HB6220 - Sealed Polycarbonate Enclosure 222 x 146 x 55mm
HB6220 - Sealed Polycarbonate Enclosure 222 x 146 x 55mm
HB6220 - Sealed Polycarbonate Enclosure 222 x 146 x 55mm

HB6220 - Sealed Polycarbonate Enclosure 222 x 146 x 55mm

HB6220

$41.90

Tax included.

Select quantity
Description

HB6220

5 Year Warranty

Features:
• Made with Polycarbonate material and moulded in light grey.
• Operating temperature : minus 40C to 125C
• The lid and base incorporate a toungue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non metallic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture & dust
• Designed to IP65 of IEC 529and NEMA 4 (dust and hoseproof)
• Internal guide slots for mounting PCB assemblies vertically
• External mounting plate (4pcs) made of thermoplastic are available as an option
• External hinge kit (2pcs) made of thermoplastic are available as an option.





Specifications





Specifications

Colour : Light Grey
IP Rating : IP65
Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection : 5 - Water jets
Width : 222mm
Height : 55mm
Depth : 146mm
Packaged Volume : 2.47l
Packaged Weight : 0.43kg
Packaged Length : 24.5cm
Packaged Width : 16cm
Packaged Height : 6.3cm
Material : Polycarbonate
PCB Internal Guide Slots : true
Gasket sealing system : true
Lid Screws : 4pc
Availability : Stocked item
Warranty
Brand

Digitech

Restock ETA (if applicable)
HB6220 - Sealed Polycarbonate Enclosure 222 x 146 x 55mm
HB6220 - Sealed Polycarbonate Enclosure 222 x 146 x 55mm
HB6220 - Sealed Polycarbonate Enclosure 222 x 146 x 55mm

Product Details

Specifications

  • Digitech

  • HeadingHB6220 - Sealed Polycarbonate Enclosure 222 x 146 x 55mm

Description

HB6220

5 Year Warranty

Features:
• Made with Polycarbonate material and moulded in light grey.
• Operating temperature : minus 40C to 125C
• The lid and base incorporate a toungue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non metallic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture & dust
• Designed to IP65 of IEC 529and NEMA 4 (dust and hoseproof)
• Internal guide slots for mounting PCB assemblies vertically
• External mounting plate (4pcs) made of thermoplastic are available as an option
• External hinge kit (2pcs) made of thermoplastic are available as an option.





Specifications





Specifications

Colour : Light Grey
IP Rating : IP65
Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection : 5 - Water jets
Width : 222mm
Height : 55mm
Depth : 146mm
Packaged Volume : 2.47l
Packaged Weight : 0.43kg
Packaged Length : 24.5cm
Packaged Width : 16cm
Packaged Height : 6.3cm
Material : Polycarbonate
PCB Internal Guide Slots : true
Gasket sealing system : true
Lid Screws : 4pc
Availability : Stocked item
Brand

Digitech

Warranty
